Documenting REST APIs workshop

By Tom Johnson / @tomjohnson

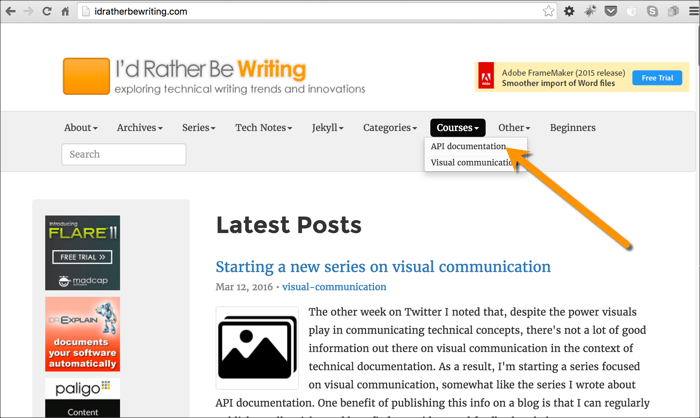

idratherbewriting.com

Workshop Outline

  1. Intro to APIs
  2. Using an API like a developer
  3. Documenting an API
  4. Publishing API documentation

1.0 Documenting REST APIs

1.1 The market for REST API doc

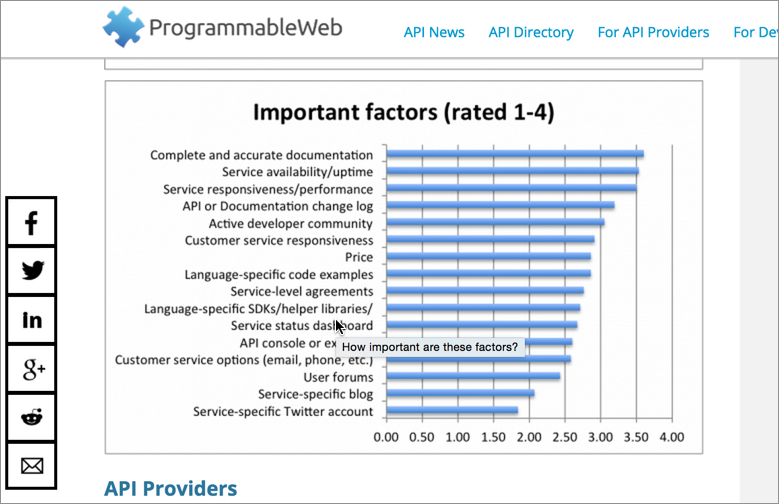

Doc is the interface

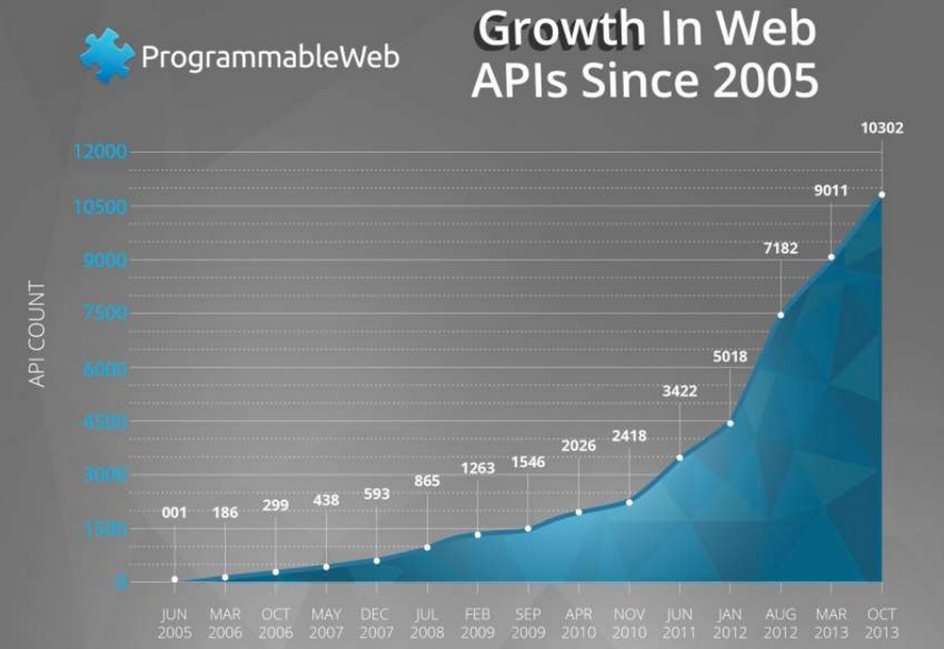

REST API growth

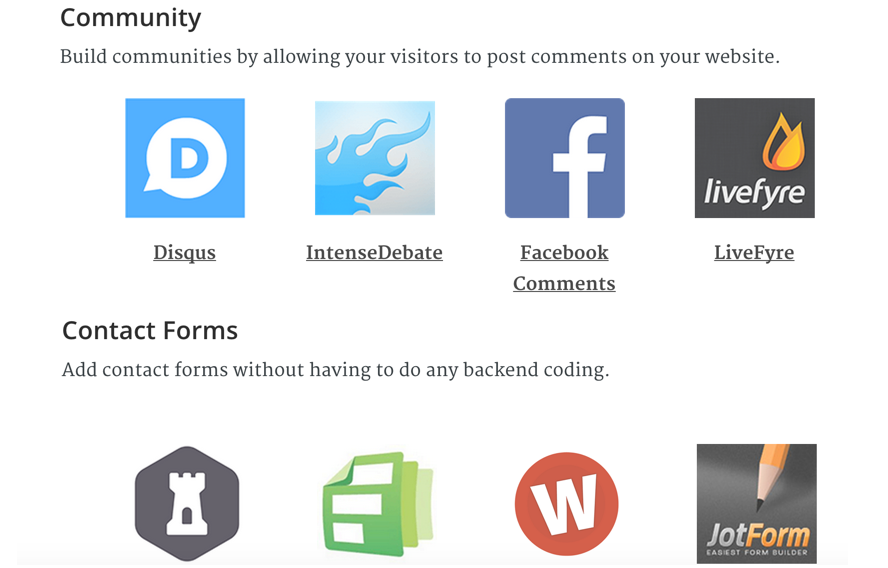

Services mashup

1.2 What is a REST API?

APIs allow different systems to interact

APIs are interfaces

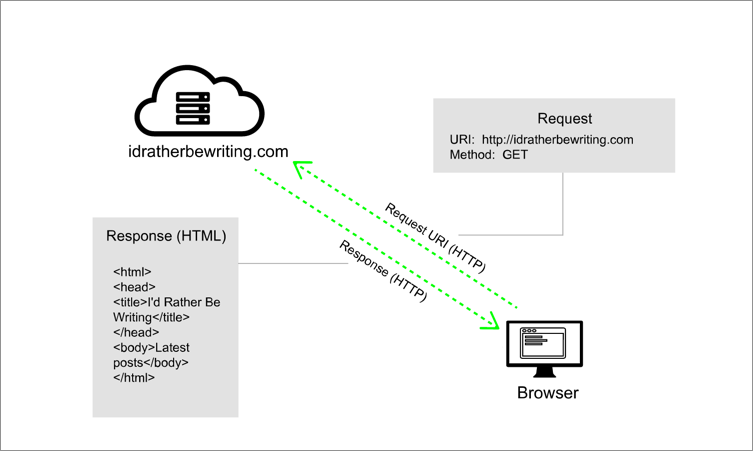

REST API model

The web follows REST

1.3 Exploring a REST API marketplace

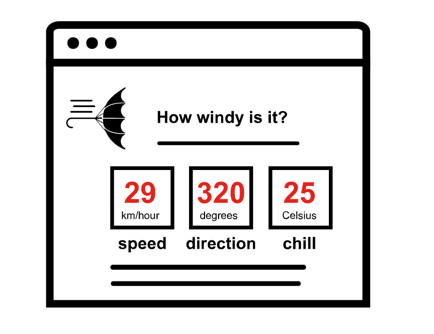

First, our API goal

See also yahoo weather

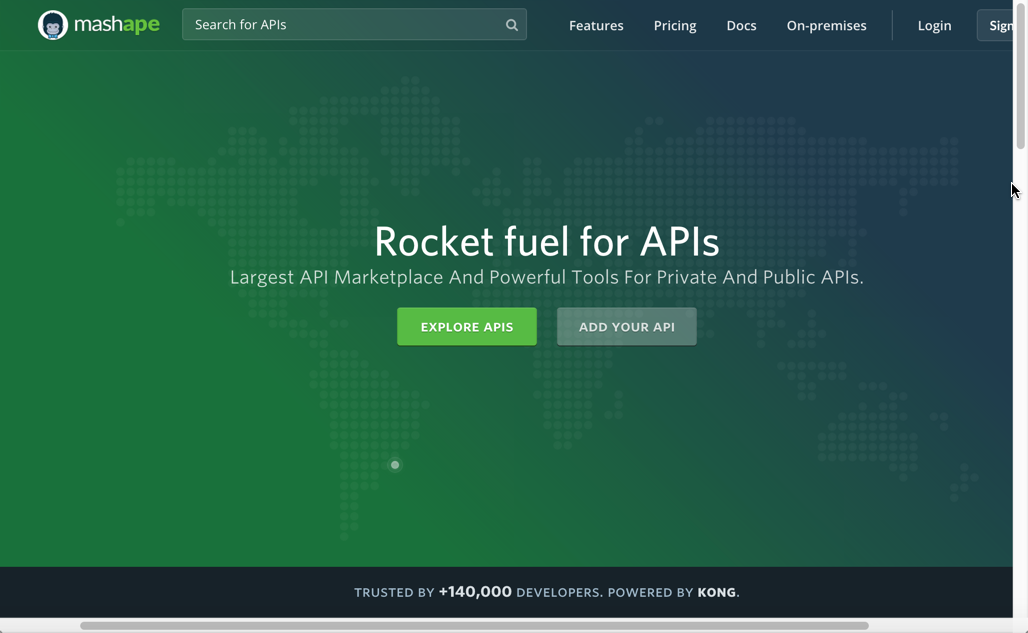

Mashape

Activity

Find Weather by fyhao on Mashape

1.4 Getting authorization keys

The need for API keys

Activity

Get the Mashape API keys so you can make requests.

1.5 Submit requests through Postman

About Postman

Activity

Make a request to each weather endpoint using Postman.

1.6 Installing cURL

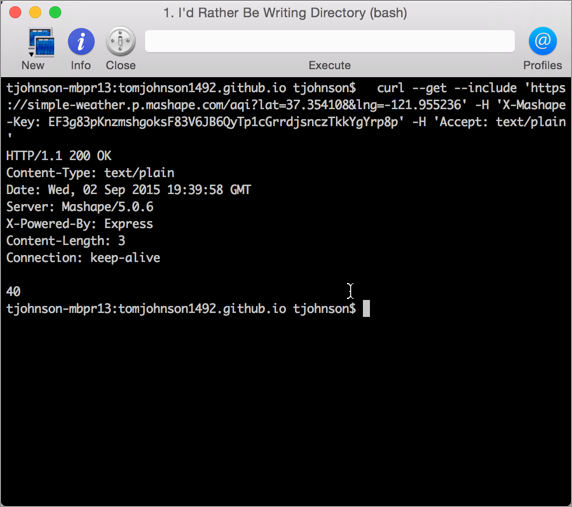

1.7 Make a cURL call

1.8 Understand cURL more

cURL commands




curl http://example.com

   curl http://example.com -i

   curl http://example.com -I

   curl -X GET http://example.com -I

   /* GET, POST, PUT, DELETE */






Unpacking the Mashape example


curl --get --include 'https://simple-weather.p.mashape.com/aqi?lat=37.3
54108&lng=-121.955236' \
-H 'X-Mashape-Key: {api key}' \
-H 'Accept: text/plain'



cURL commands

Command Description
-i or --include Include response headers
-d or --data Include data to post
-H or --header Submit header
-X POST The HTTP method to use
@filename Load content from a file

Full example



curl -i -H "Accept: application/json" -X POST -d "{status:MIA}"
   http://personsreport.com/status/person123




Activity

Test your memory:

  • -i means...
  • -H means...
  • -X POST means...
  • -d means...

1.9 Using methods with cURL (Petstore)

Using Petstore API

Activity

  1. Create a pet
  2. Update your pet's name
  3. Get your pet's name by ID
  4. Delete your pet

2.0 Analyze the JSON response

JSON objects are key-value pairs


{
"key1":"value1",
"key2":"value2"
}


JSON arrays are lists of items


    ["first", "second", "third"]


You can include objects inside arrays


[
   {
      "name":"Tom",
      "age":39
   },
   {
      "name":"Shannon",
      "age":37
   }
]


You can include arrays inside objects


   {
"children": ["Avery","Callie","lucy","Molly"],
"hobbies": ["swimming","biking","drawing","horseplaying"]
}


Activity

Identify the objects and arrays in the weatherdata endpoint response.

2.1 Using the JSON from the response

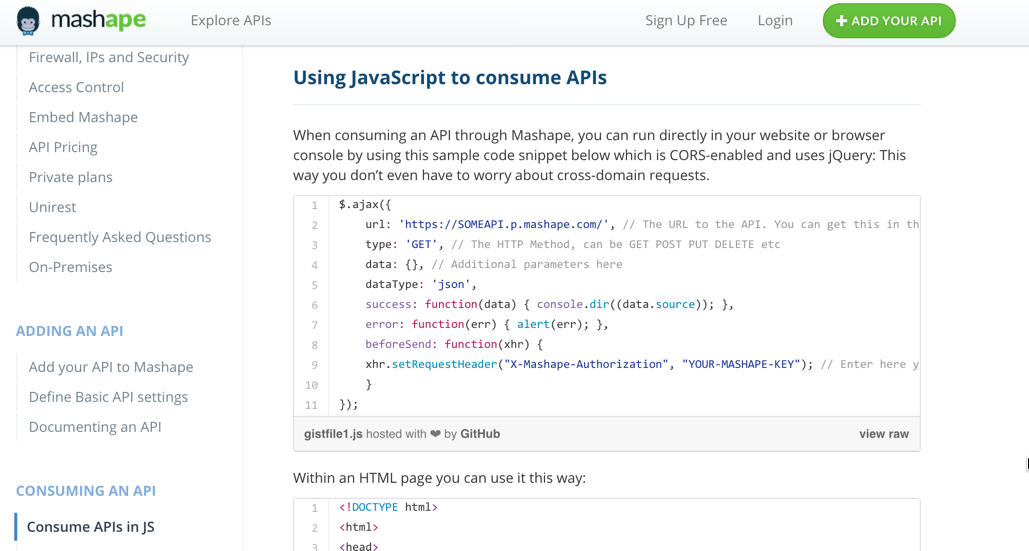

Generating code

Logging the response to the console

Activity

Create a sample web page and print the weather description to the page following the instructions in 2.1.

2.2 Access the JSON values

dot notation



      data.query.results.channel.item.description

      console.log (data.query.results.channel.item.description);


Activity

Print the weather description to the page.

2.3 Diving into dot notation

Use a dot to access the value from a key


"data": {
"name": "Tom"
}


Access "Tom" using data.name.

Use square brackets to access the values in an array


"data" : {
  "items": ["ball", "bat", "glove"]
}


To access glove, you would use data.items[2].

Exercise with dot notation

Practice accessing different values through dot notation following the exercise on 2.3.

2.4 New API endpoint to document

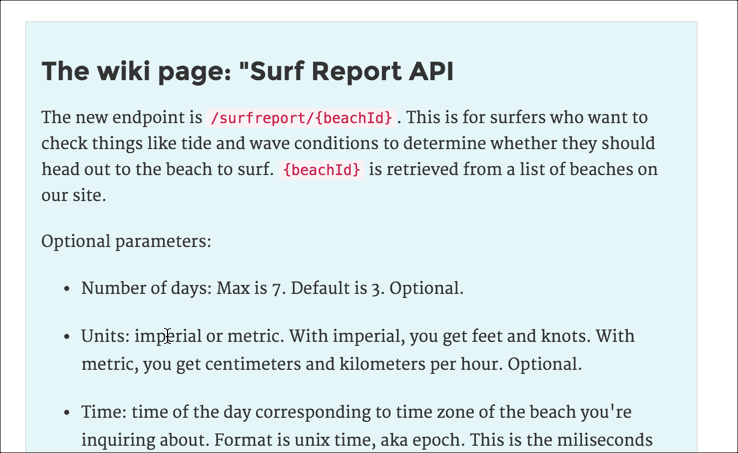

Endpoint wiki page details

Essential sections in reference documentation

  • Resource description
  • Endpoint
  • Methods
  • Parameters
  • Request submission example
  • Request response example
  • Status and error codes
  • Code samples

Activity

Create the basic structure for the endpoint documentation

2.5 Documenting resource descriptions

Terminology for "resource" varies

  • API calls
  • Endpoints
  • API methods
  • Calls
  • Resources
  • Objects
  • Services
  • Requests

Some examples

When it gets confusing to refer to resources by the endpoint


  api_site.com/{apikey}/users
// gets all users

api_site.com/{apikey}/users/{userId}
// gets a specific user

api_site.com/{apikey}/rewards
// gets all rewards

api_site.com/{apikey}/rewards/{rewardId}
// gets a specific reward

api_site.com/{apikey}/users/{userId}/rewards
// gets all rewards for a specific user

api_site.com/{apikey}/users/{userId}/rewards/{rewardId}
// gets a specific reward for a specific user

api_site.com/{apikey}/users/{userId}/rewards/{missionId}
// gets the rewards for a specfic mission related to a specific user

api_site.com/{apikey}/missions/{missionid}/rewards
// gets the rewards available for a specific mission


Activity

Critique the Mashape Weather API descriptions.

Compare with Aeris Weather API descriptions.

Activity

Write the resource description for surfreport.

2.6 Documenting the endpoint definitions and methods

Terminology for "endpoint" varies

  • Requests
  • Endpoints
  • API methods
  • Resource URLs
  • URLs
  • URL syntax

Represent parameter values with curly braces


  /campaigns/{campaign_id}/actions/send


Listing the method

Activity

Write the endpoint definition and method for surfreport.

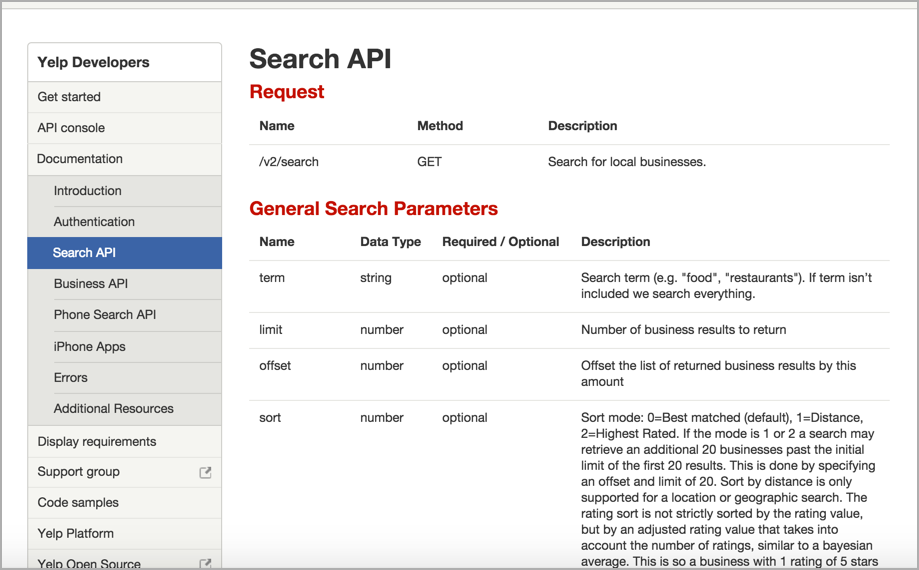

2.7 Documenting parameters

Parameters configure the endpoint

Listing data types

  • string
  • integer
  • boolean
  • object

Parameter order is irrelevant


 /surfreport/{beachId}?days=3&units=metric&time=1400

 /surfreport/{beachId}?time=1400&units=metric&days=3


Submitting parameters in the request body


 {
"days": 2,
"units": "imperial",
"time": 1433524597
}


Activity

Construct a table to list the surfreport parameters

2.8 Documenting sample requests

Requests clarify syntax

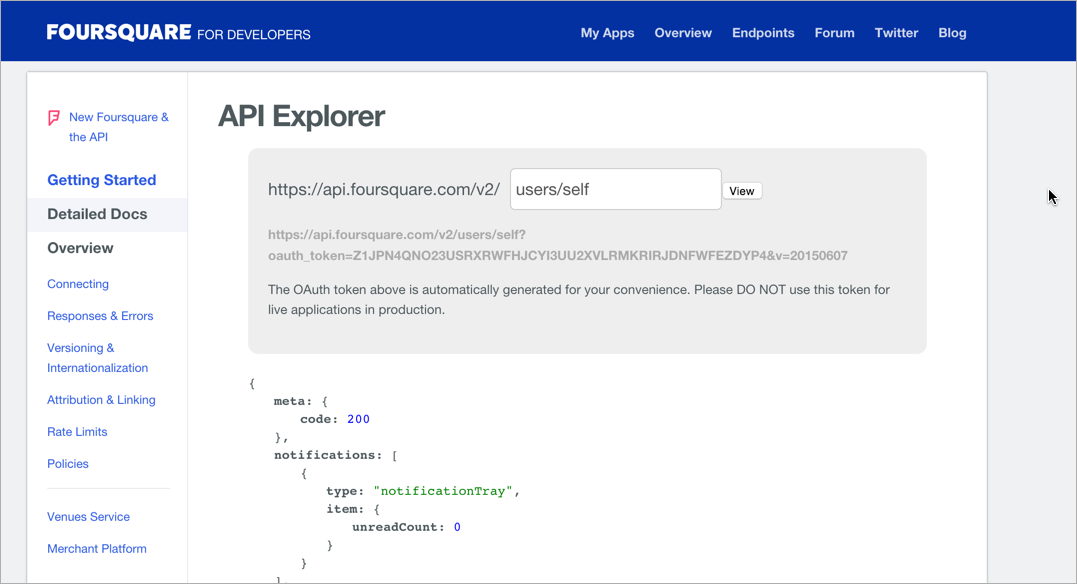

API Explorers provide interactivity with your own data

Activity

Document the sample request with the surfreport/{beachId} endpoint

2.9 Documenting sample responses

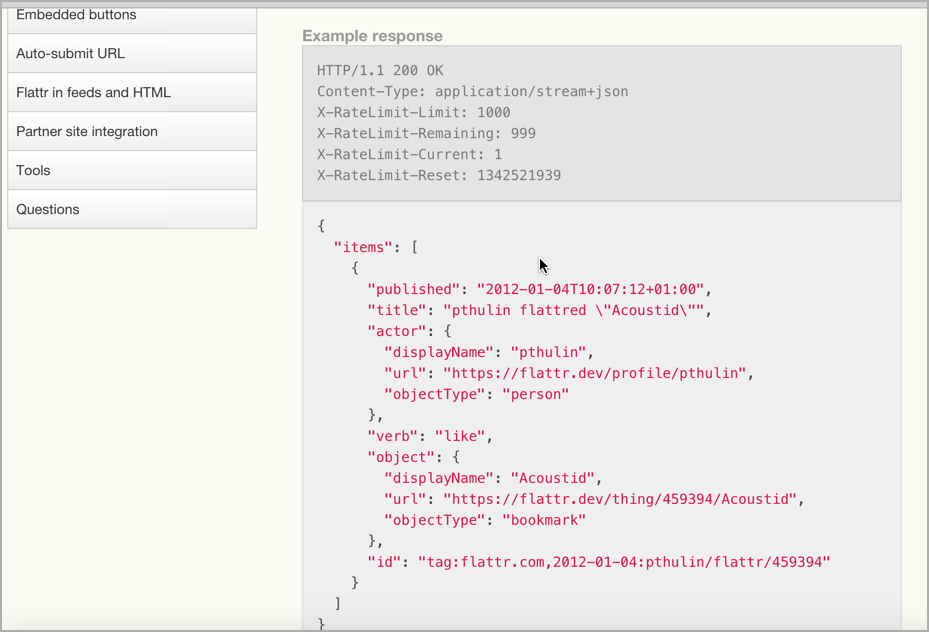

A sample of a sample response

Strategies for nested objects

Where to include sample responses

Activity

Create a sample response in your surfreport/{beachId} endpoint.

3.0 Documenting code samples

Which language?

See also Twilio

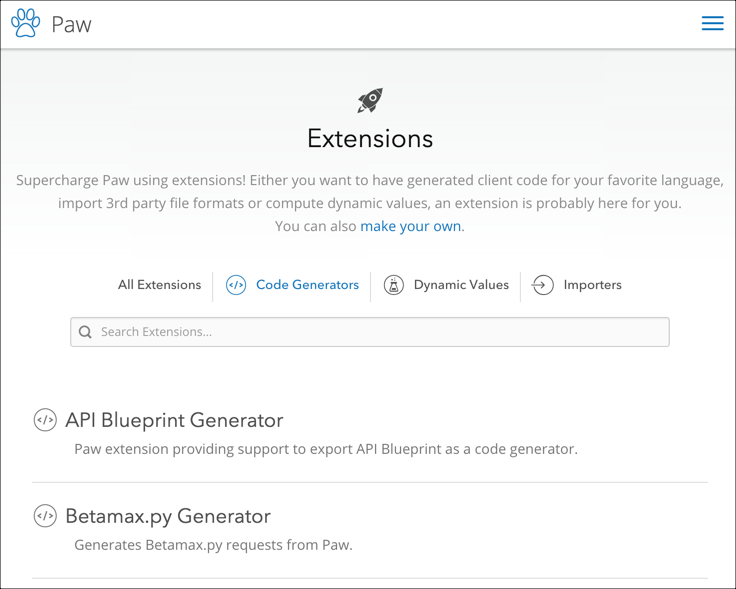

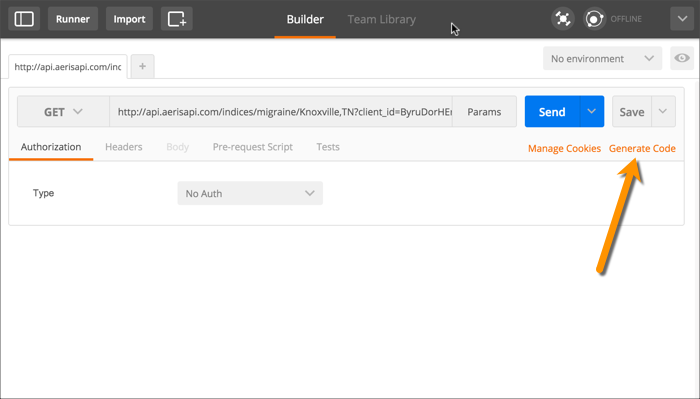

Auto-generating code samples

Activity

Generate a JavaScript code sample from Postman following the steps in 3.0.

Activity

Create a code sample for the surfreport endpoint.

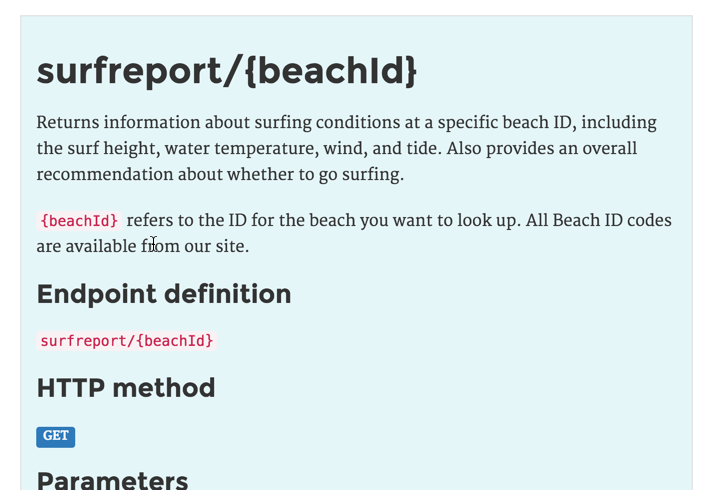

3.1 Putting it all together

3.2 Creating the user guide

Sample template

Essential sections

  • Overview
  • Getting started
  • Authorization keys
  • Code samples/tutorials
  • Response and error codes
  • Quick reference

3.3 Writing the overview section

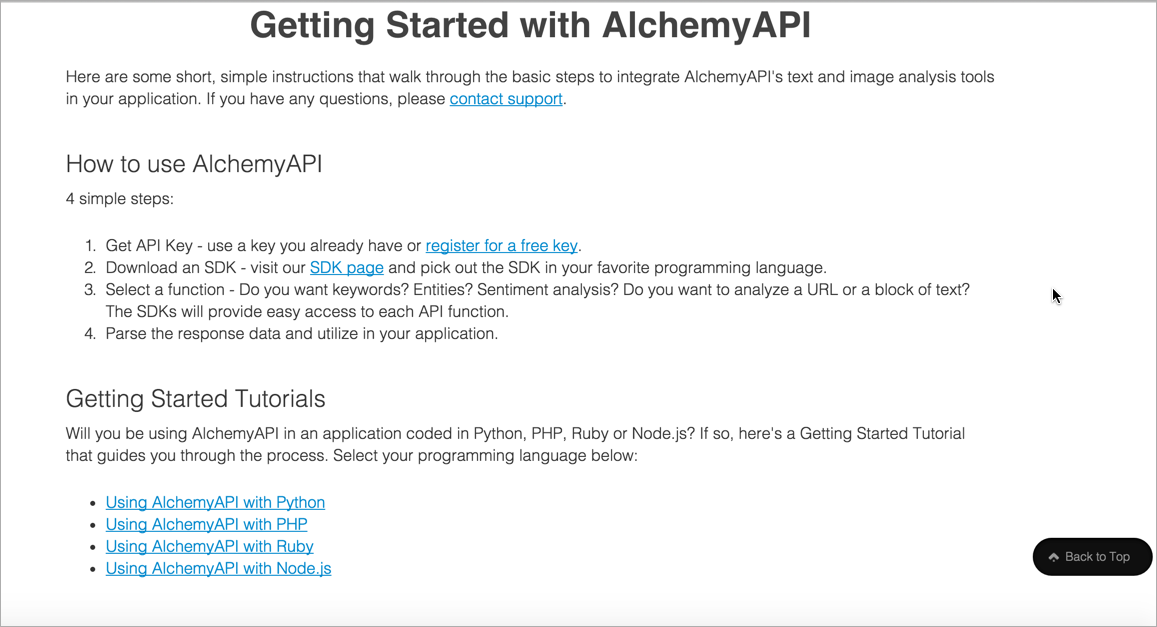

3.4 Writing the Getting Started section

Other examples: Hipchat, Aeris, Smugmug

3.5 Documenting authorization

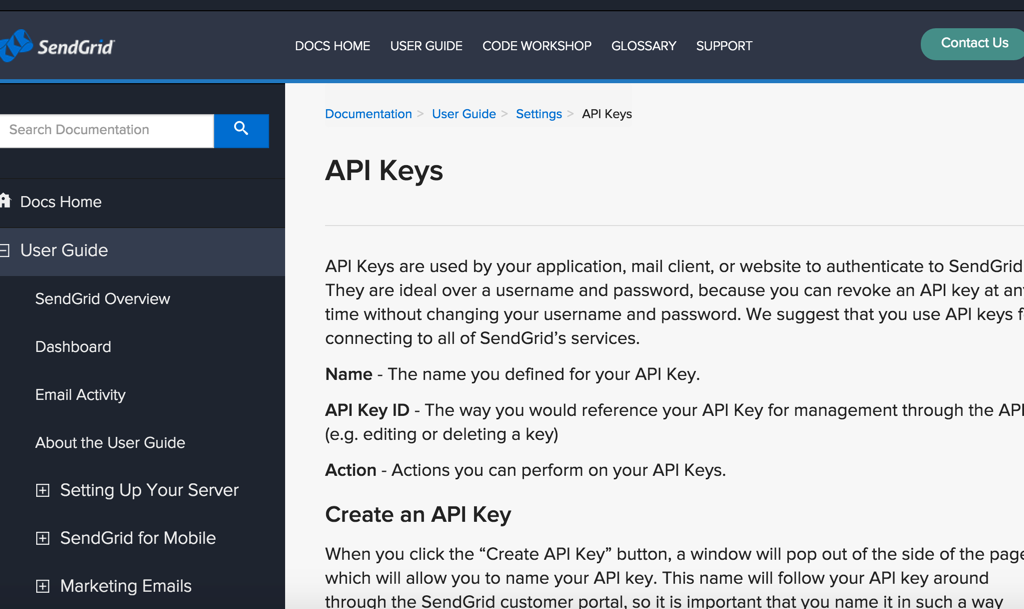

API keys

Basic Auth


                 Authorization: Basic bG9sOnNlY3VyZQ==


HMAC

OAuth 2.0

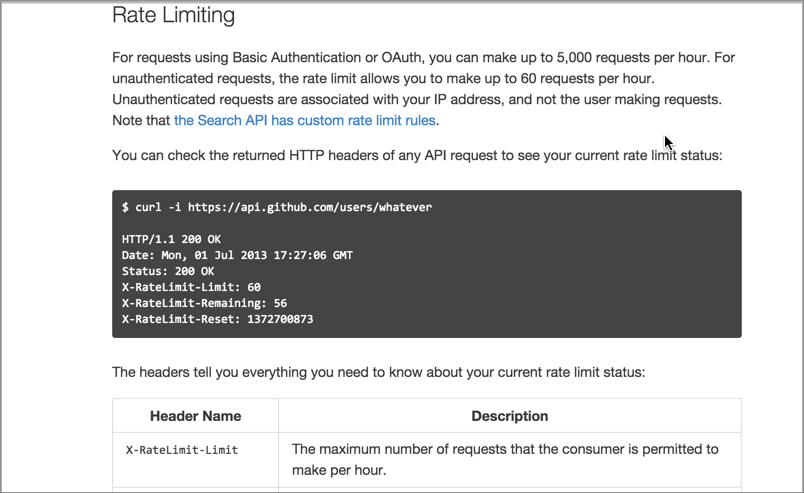

Rate limits

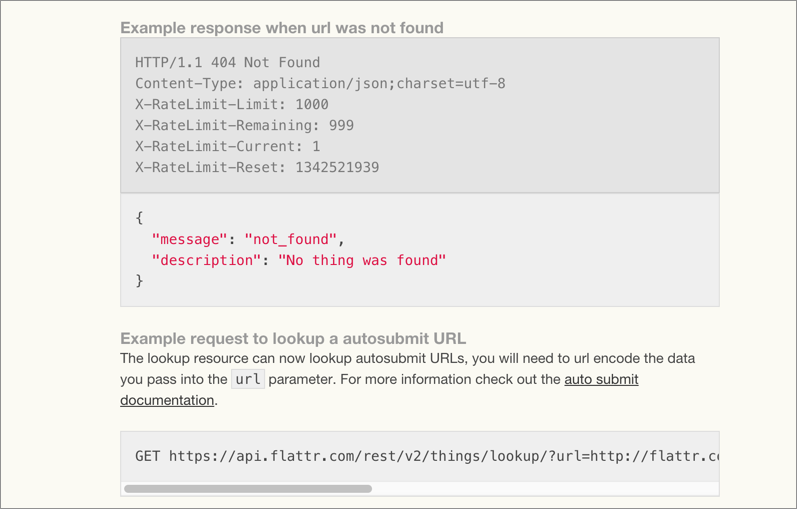

3.6 Documenting response codes

Error codes, status codes

Status codes specific to endpoints

Possible reasons for errors

  • Invalid API keys
  • Wrong data types
  • Bad JSON syntax in post body
  • No resource to return
  • Rate limits exceeded
  • Max or min values exceeded
  • Missing parameter
  • Network-related error

3.7 Documenting code samples

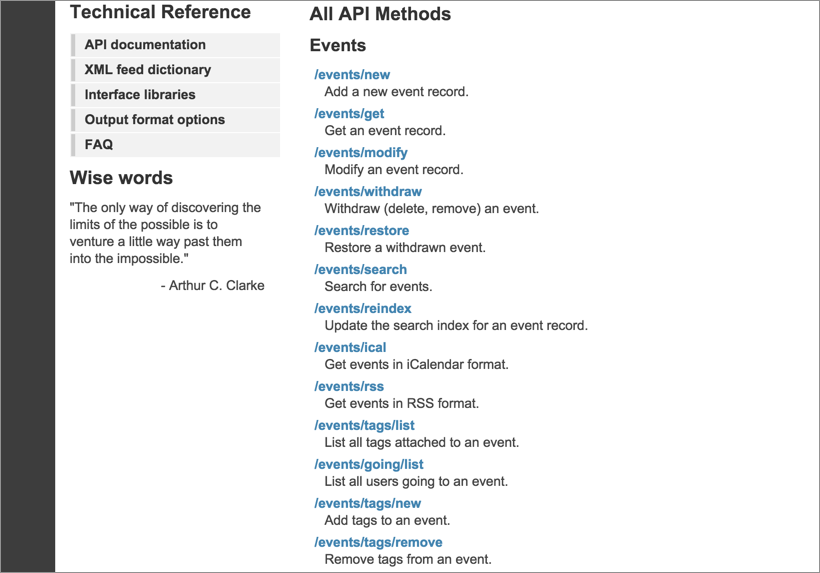

3.8 Creating the quick reference guide

See also the Shopify cheat sheet.

3.9 Exploring more REST APIs

  • EventBrite API
  • Aeris Weather API
  • Flickr API
  • Klout API

Swap in {api key} for the real value. You can use my keys.

Note: JS display activities are optional.

4.0 EventBrite example

Activity

Use the EventBrite API to get the event title and description of this event.

4.1: Flickr example

Activity

Use the Flickr API to get photo images from this Flickr gallery.

4.2 Klout example

Activity

Use the Klout API to get your Klout score and a list of your influencers and influencees.

4.3 Aeris Weather Example

Activity

Use the Aeris Weather API to get the wind speed (MPH) for a specific place (your choice).

4.4 Moving on to Publishing API docs

Hooray! You finished the documenting APIs part of the course! Now, on to publishing API docs.

4.5 Publishing API doc

Why devs don't use HATs

  1. No integration into version control
  2. No auto-generation of doc from source
  3. No reference templating engines
  4. No interactive API consoles
  5. No sexy outputs that sell

4.6 List of 100 APIs

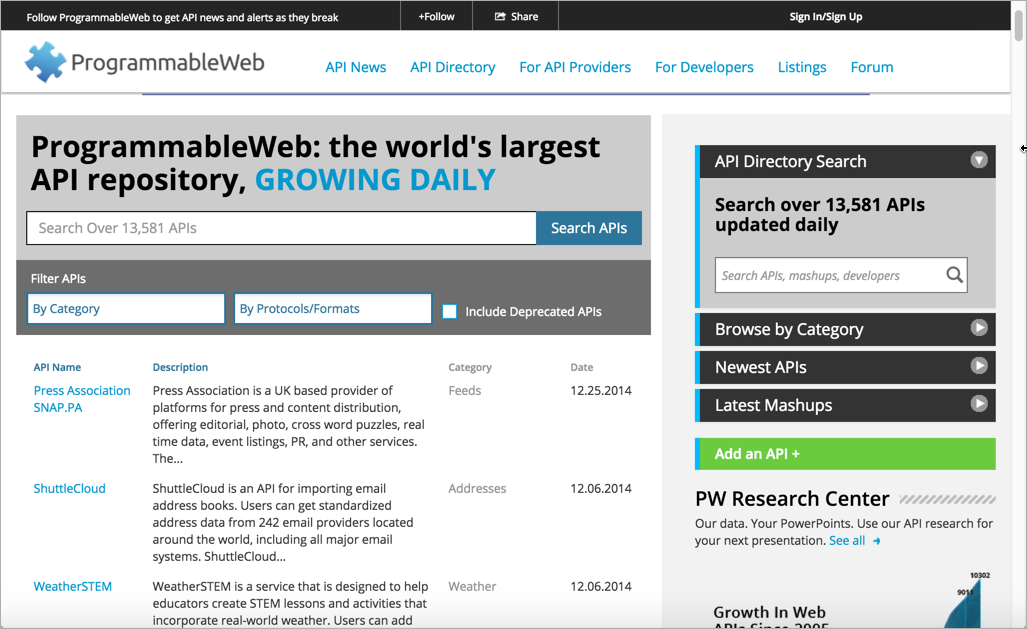

Programmable Web

Activity

Look at about 5 different APIs from the list on "4.6 List of 100 APIs." Identify one thing that the APIs have in common.

4.6 Breaking down API doc

  1. Guides
  2. Reference
  3. Tutorials

4.8 Tool decisions

  • Who will write? Engineers or tech writers?
  • Pros of having engineers write...
  • Cons of having engineers write...

4.9 Github wikis

Collaboration platform

Activity

Following the instructions in 4.9, do the following:

  1. Create a Github wiki and publish content on a sample page.
  2. Save the Github repository locally.
  3. Make a change locally, commit it, and push the commit to the Github repository.

5.0 More about Markdown

Sample syntax


## Heading 2

This is a bulleted list:

* first item
* second item
* third item

This is a numbered list:

1. Click this **button**.
2. Go to [this site](http://www.example.com).
3. See this image:

![My alt tag](myimagefile.png)

For a detailed example, see the code sample on 5.0.

Activity

On your Github wiki page, edit the page and create the following:

  • level 2 heading
  • numbered list
  • bulleted list
  • bold word
  • code sample with html highlighting
  • table

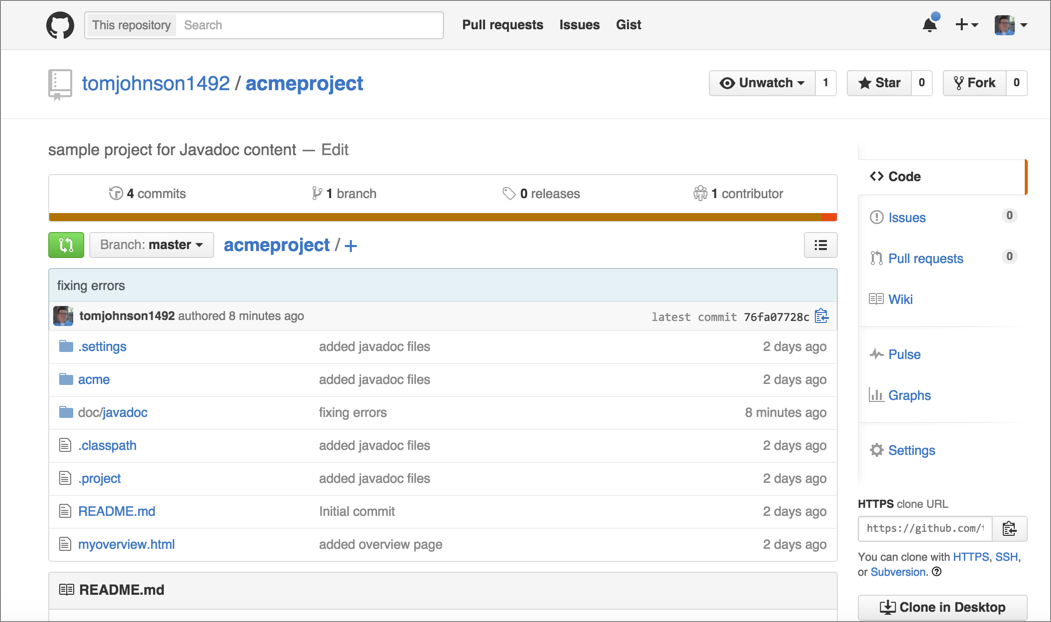

5.1 Using a version control system

Github and social coding

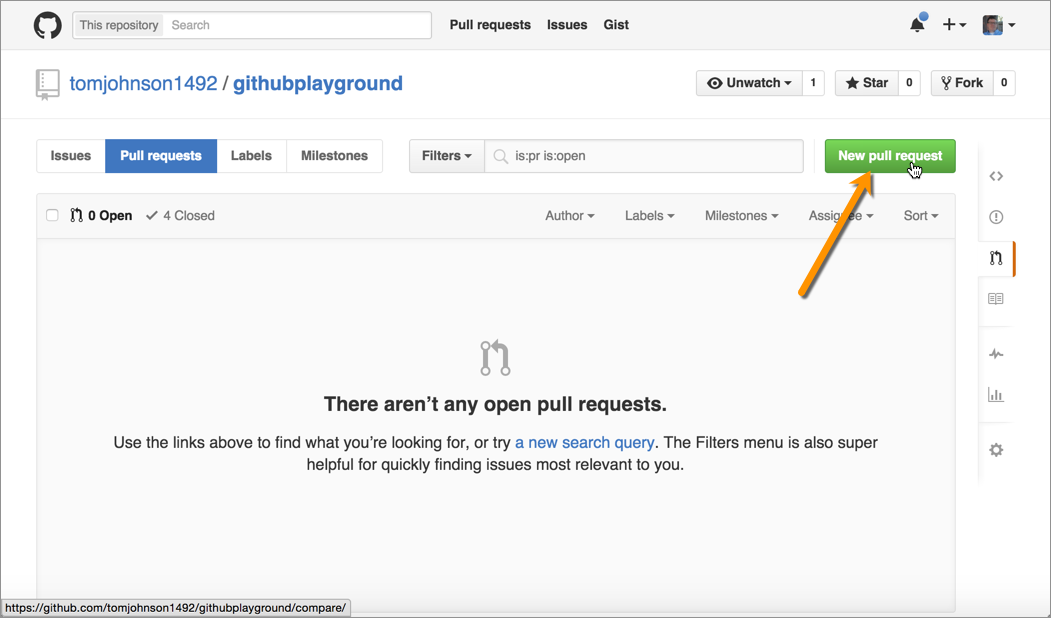

5.2 Pull request workflows

Merging branches

5.3 REST API specification formats

  • Swagger
  • RAML
  • API Blueprint

5.4 Swagger

Sample output

Activity

Follow the instructions in 5.4 to create a Swagger output using the information from the Mashape Weather API.

5.5 More about YAML

Code without < markup >

Sample syntax



reindeer:
  - Donner
  - Blitzen
  - Comet
  - Cupid
hobbies:
  active:
    - flying
    - prancing
  inactive:
    - pawing
    - driving

items:
  - title: Course overview
    url: /docapis_course_overview/
    weight: 1.0
    audience: writers

address: 1234 main street
route: Google maps



Same YAML content but in JSON


      {
  "reindeer": [
    "Donner",
    "Blitzen",
    "Comet",
    "Cupid"
  ],
  "hobbies": {
    "active": [
      "flying",
      "prancing"
    ],
    "inactive": [
      "pawing",
      "driving"
    ]
  },
  "items": [
    {
      "title": "Course overview",
      "url": "/docapis_course_overview/",
      "weight": 1,
      "audience": "writers"
    }
  ],
  "address": "1234 main street",
  "route": "Google maps"
}

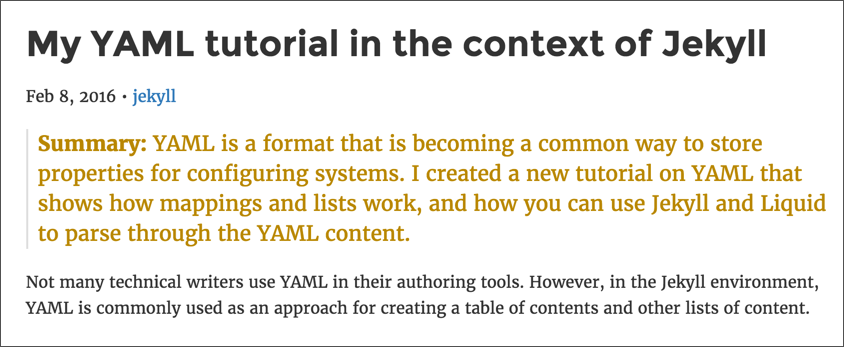

My YAML tutorial

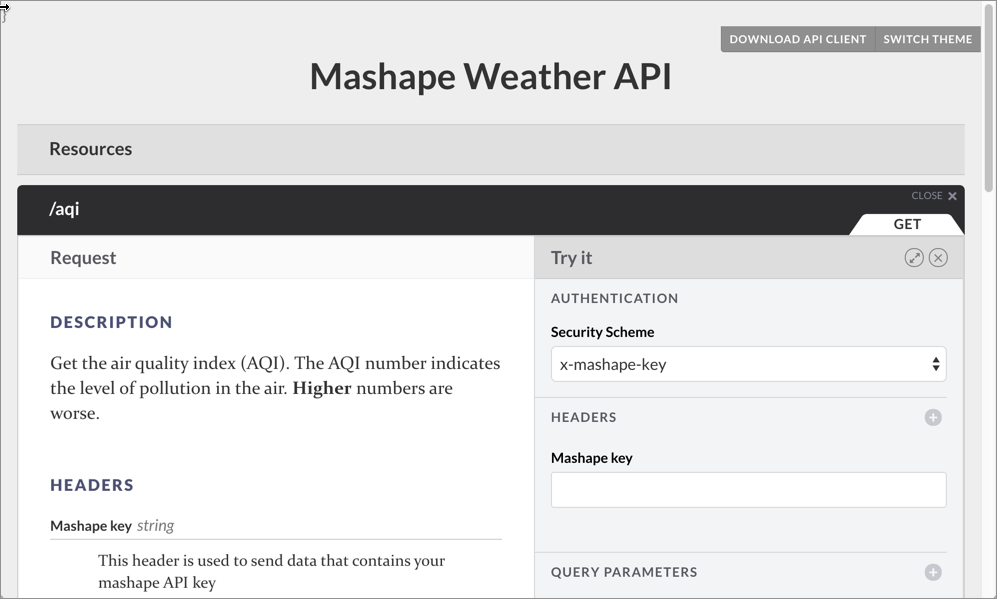

5.6 RAML

Sample output

Activity

Follow the instructions in 5.6 to create a RAML output using the information from the Mashape Weather API.

5.7 API Blueprint

Sample output

Activity

Follow the instructions in 5.7 to create an API Blueprint output using the information from the Mashape Weather API.

5.8 Static site generators

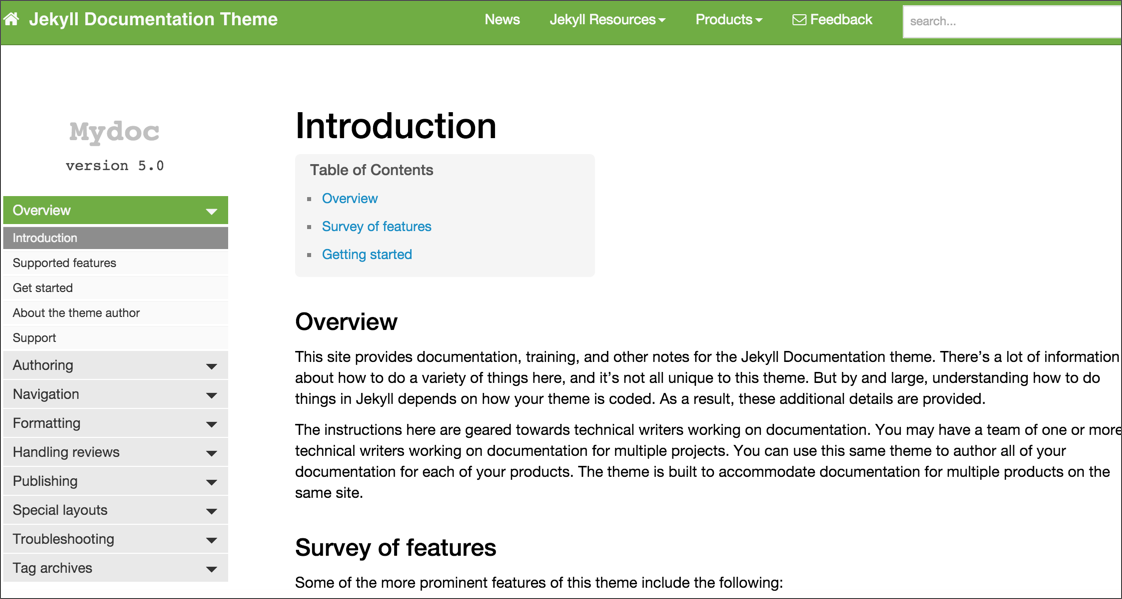

Documentation theme for Jekyll

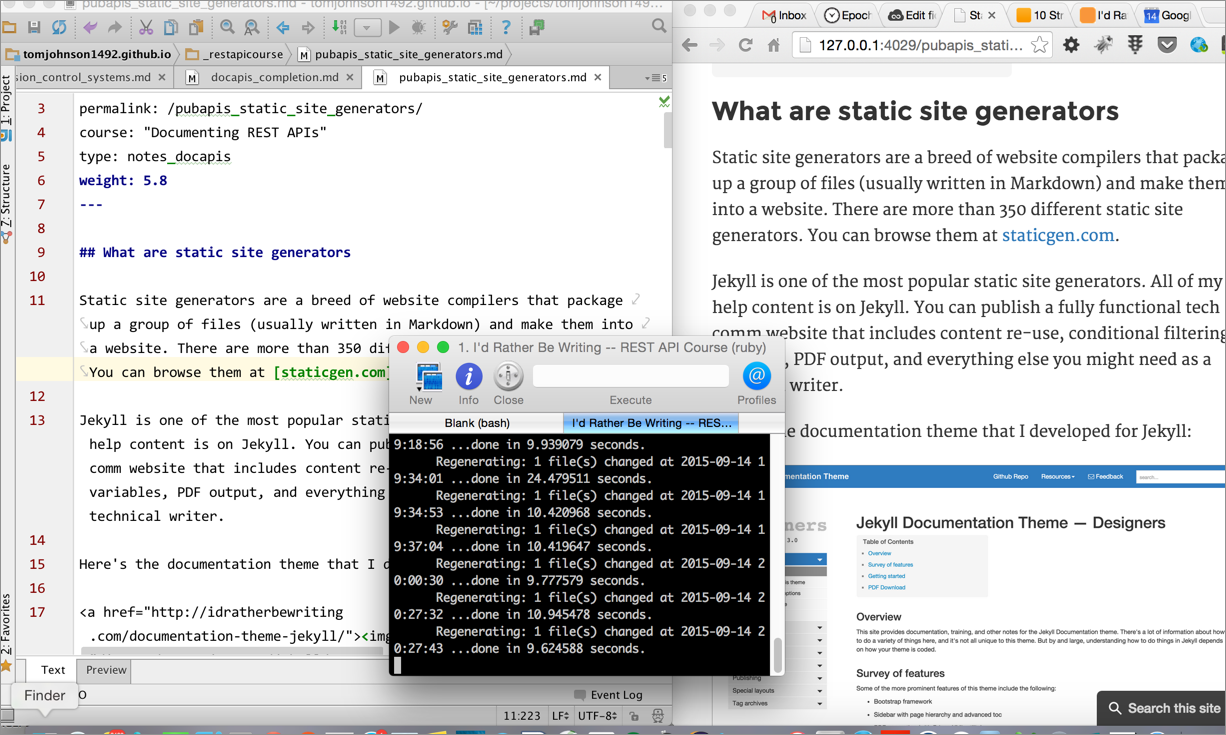

Writing in Jekyll

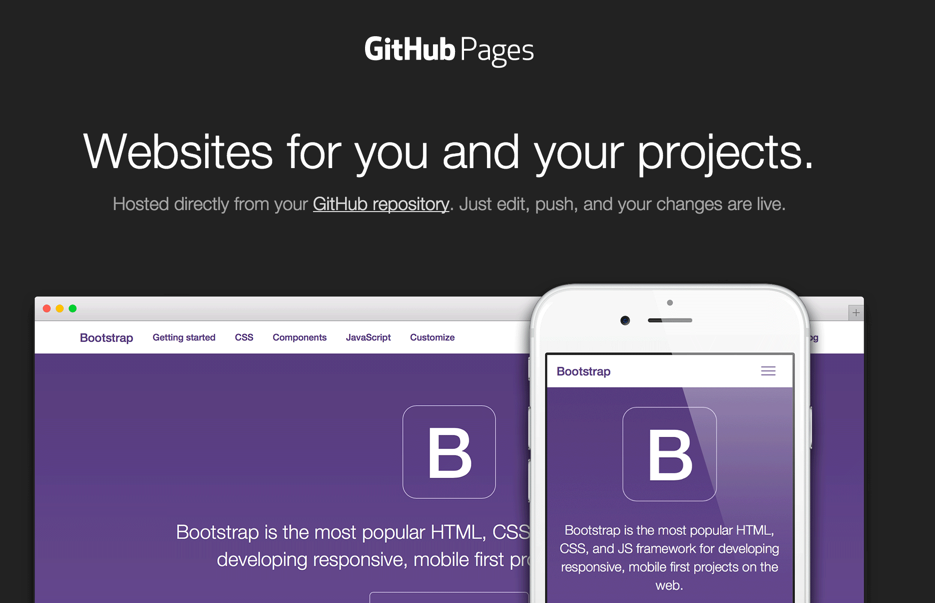

Github Pages

Github Pages How-to

  1. Create Github repo.
  2. Create gh-pages branch.
  3. In repo settings, make gh-pages branch the default.
  4. Clone the repo and commit a Jekyll site.
  5. Github builds and displays the Jekyll site.

Activity

Fork the Documentation theme for Jekyll and publish it via CloudCannon following the instructions in 5.8.

5.9 Readme.io

Sample output

Activity

Explore creating pages and publishing API documentation (the Weather Mashape API info) on readme.io.

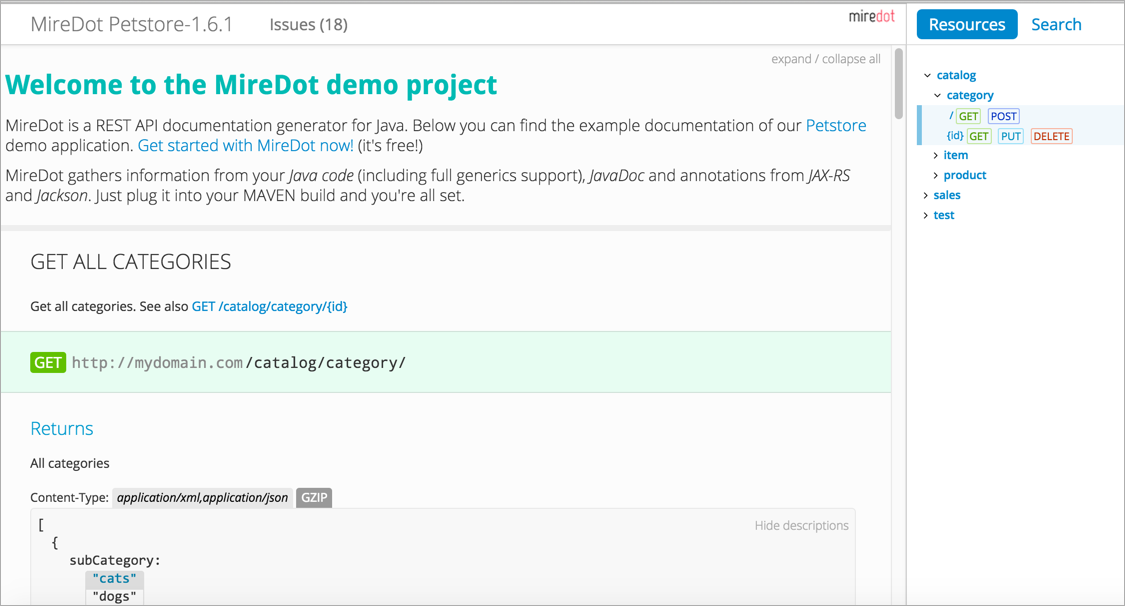

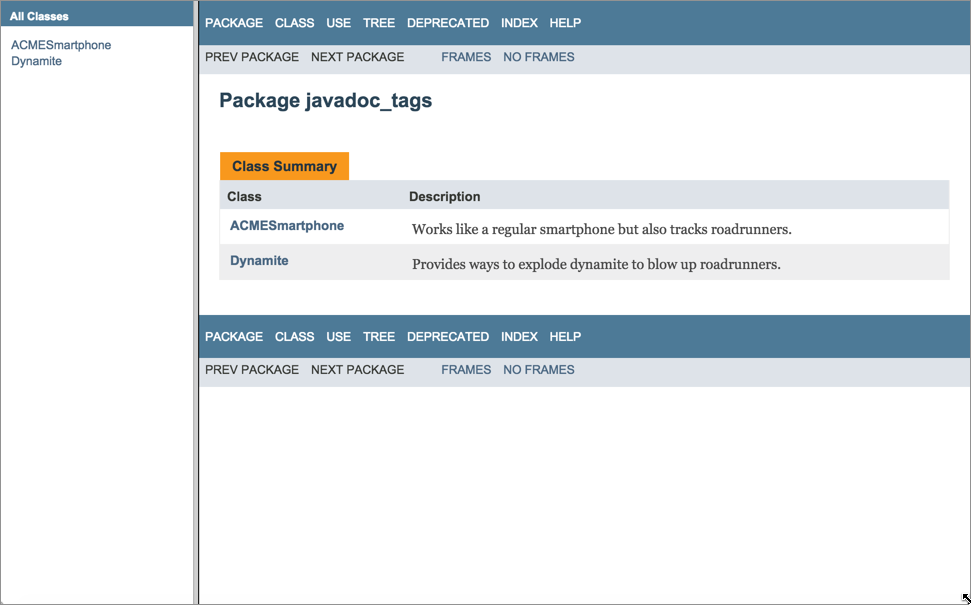

6.0 Miredot

6.1 Custom UX solutions

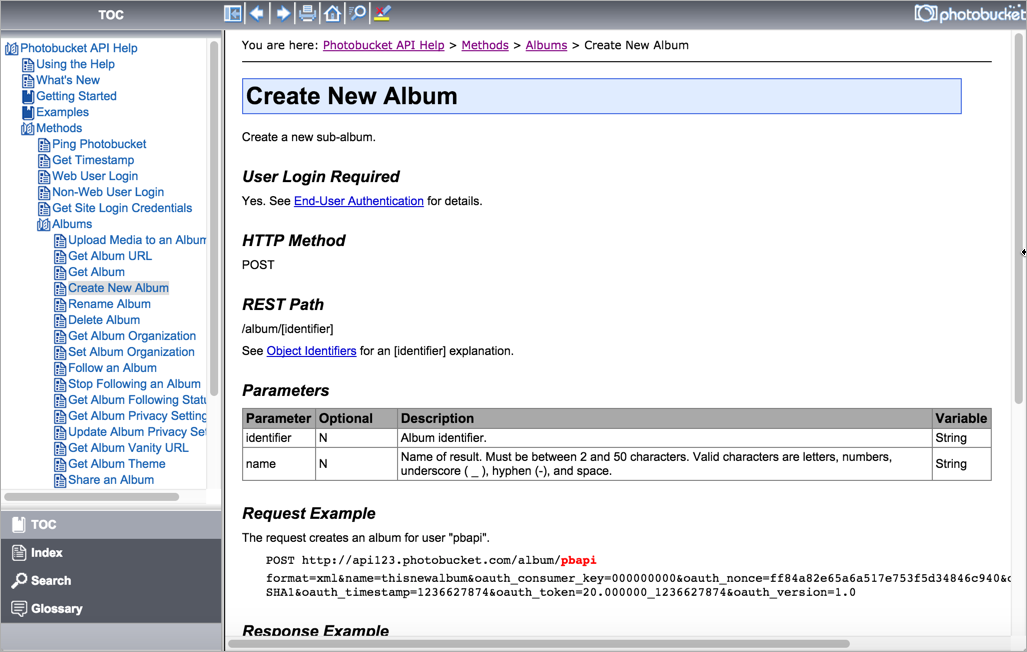

6.2 Help authoring tools

6.3 Design patterns

Common themes

Five patterns

  • Structure and templates
  • Website platform
  • Abundant code samples
  • Long-ish pages
  • API Interactivity

6.4 Structure and templates

6.5 Website platform

6.6 Abundant code samples

6.7 Long-ish pages

6.8 API Interactivity

6.9 Challenging factors

  • Translation
  • Content re-use
  • Versioning
  • Authentication
  • PDF

7.0 Tools versus content

7.1 Overview to native library APIs

Programming skills needed to document native library APIs?

7.2 Getting the Java source

Sample Java project

Activity

Download the acme sample project on Github following the instructions in 7.2.

  1. Clone the source on Github
  2. In Eclipse, go to File > New Java Project
  3. Clear the Use default location check box.
  4. Browse to where you cloned the Github project.

7.3 Java in a nutshell

Classes


      public class Bicycle {

      // code...

      }


Methods


      add(a, b) {
        sum = a + b;
      }


Methods


class Bicycle {

   void turn() {
   // code ...
   }
   void pedal(int rotations) {
   System.out.println("Your speed is " + rotations + " per minute".);
   }

   int brake(int force, int weight) {
   torque == force * weight;
   return torque;
   }
}


Main method


   public static void main(String[] args) {

   //Java runs the code it finds within this method...

   }


Fields


class Bicycle {

   String brand;
   int size;

}



Enums


   public enum Spoke { SINGLE-BUTTED, DOUBLE-BUTTED, TRIPLE-BUTTED };


Objects


myBicycle Bicycle = new Bicycle();

myBicycle.brand = "Trek";
myBicycle.pedal();



Constructors


public class Bicycle{

public Bicycle(String brand, int size) {
   this.brand = model;
   this.size = size;
   }
}

Bicycle myBicycle = new Bicycle ("Trek", 22);



Packages


package vehicles

public class Bicycle {

}


Exceptions


public class Bicycle throws IOException {

}


Inheritance


public class Bicycle extends Vehicle {

}


Interfaces


public interface Wheel {

   public void rotate();

}



public class MountainBikeWheel implements Wheel {

   public void rotate() {
System.out.println("whoosh ... whoosh .... whoosh");
   }

}


JAR files and WAR files

Java summary

  • Class: Blueprints for something
  • Object: An instance of a class
  • Methods: What the object/class can do
  • Fields: Variables in the object/class
  • Constructor: A method to create an object for a class
  • Package: A folder that groups classes

Java summary

  • Access modifier: The scope something can be accessed at
  • Interface: A skeleton class with empty methods
  • Enum: A data type offering predefined constants
  • Subclass: A class that inherits another class' members
  • JAR file: A zip-like file containing Java classes
  • WAR file: A compiled Java web app to be deployed

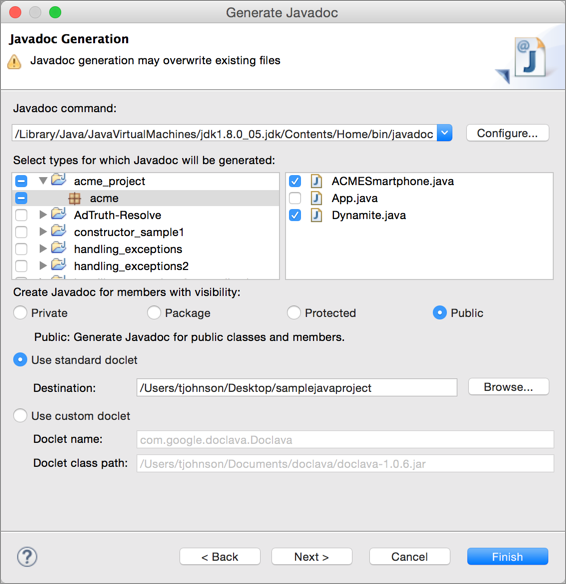

7.4 Create a Javadoc

7.5 Javadoc tags

Common tags

  • @author
  • @param
  • @deprecated
  • @return
  • @see
  • {@link}
  • @throws
  • @override

Comments versus Javadoc annotations


// sample comment...

/*
sample comment
*/


/**
*
*
*
*
*/


General pattern


/**
* [short description]
*

* [long description] * * [author, version, params, returns, throws, see, other tags] * [see also] */

The description


/**
* Short one line description.
*

* Longer description. If there were any, it would be * here. *

* And even more explanations to follow in consecutive * paragraphs separated by HTML paragraph breaks. * * @param variable Description text text text. * @return Description text text text. */ public int methodName (...) { // method body with a return statement }

Tag order


@author (classes and interfaces)
@version (classes and interfaces)
@param (methods and constructors)
@return (methods)
@throws (@exception is an older synonym)
@see
@since
@serial
@deprecated


@param tags


@param url the web address of the site



@throws tag


@throws IOException if your input format is invalid


@see tags


@see #field
@see #Constructor(Type, Type...)
@see #Constructor(Type id, Type id...)
@see #method(Type, Type,...)
@see #method(Type id, Type, id...)
@see Class
@see Class#field
@see Class#Constructor(Type, Type...)
@see Class#Constructor(Type id, Type id)
@see Class#method(Type, Type,...)
@see Class#method(Type id, Type id,...)
@see package.Class
@see package.Class#field
@see package.Class#Constructor(Type, Type...)
@see package.Class#Constructor(Type id, Type id)
@see package.Class#method(Type, Type,...)
@see package.Class#method(Type id, Type, id)


link tags


/**
* First paragraph.
*

* Link to a class named 'Foo': {@link Foo}. * Link to a method 'bar' on a class named 'Foo': {@link Foo#bar}. * Link to a method 'baz' on this class: {@link #baz}. * Link specifying text of the hyperlink after a space: {@link Foo the Foo class}. * Link to a method handling method overload {@link Foo#bar(String,int)}. */ public ...

Previewing Javadoc comments

7.6 Exploring the Javadoc output

7.7 Doxygen

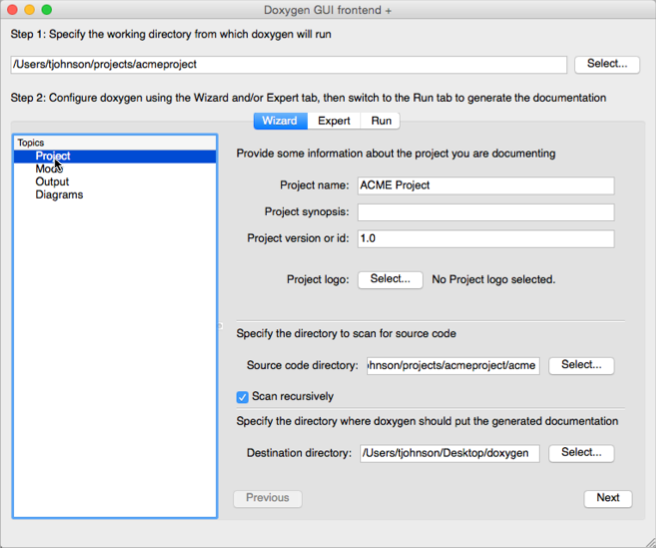

Front-end GUI generator

Doxygen output sample

7.8 Creating non-ref docs with native library APIs

… auto-generated documentation is worse than useless: it lets maintainers fool themselves into thinking they have documentation, thus putting off actually writing good reference by hand. If you don’t have documentation just admit to it. Maybe a volunteer will offer to write some! But don’t lie and give me that auto-documentation crap. — Jacob Kaplan Moss

7.9 My biggest tip: Test everything

8.0 Workshop summary

  • Using a REST API as a developer
  • Documenting a new API endpoint
  • Documenting non-reference sections
  • Exploring other REST APIs
  • Publishing API docs
  • Design patterns
  • Documenting native library APIs

Thanks!

Tom Johnson
idratherbewriting.com
@tomjohnson
tomjohnson1492@gmail.com
