Jekyll versus DITA

Bridging the Gap between Tech Comm and the Web

Berkeley STC chapter

May 13, 2015

Created by Tom Johnson / @tomjohnson

How I ended up in this dilemma

"As to what your journey says, I think it says that all the current models of tech comm development are deeply unsatisfactory in one way or another."

— Mark Baker, Every Page Is Page One

"Think Big Thursdays"

How would you design the perfect help system?

Story of telegraph and telephone

Bell and an early model of the telephone

A framework for innovation

Survey of innovations

Innovations with technology

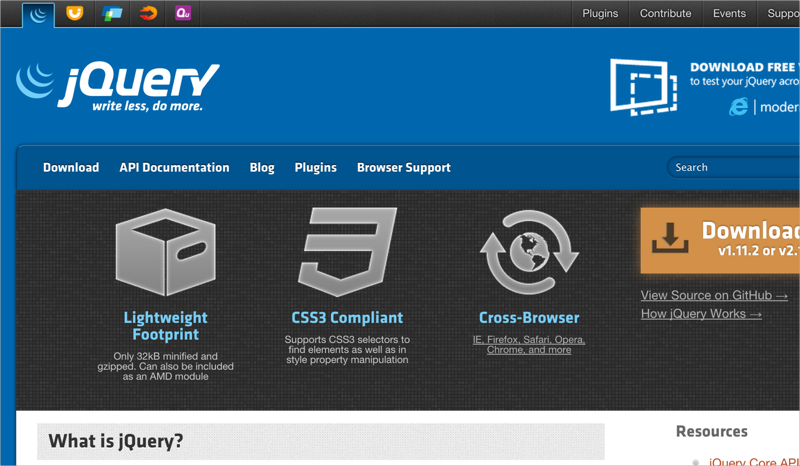

HTML5 • REST APIs • CSS media queries • oAuth • AJAX • instant search • SVG • augmented reality • Internet of Things • big data • social networks • YouTube • Bootstrap • static site generators • jQuery • YouTube • StackOverflow • Github • continuous integration • LESS & Sass • wikis

Innovations with ideas

decentralization • agile • crowdsourcing • gamification • Cluetrain Manifesto (user-to-user communication) • "Everything Is Miscellaneous" • The Long Tail • semantic web • information architecture • content marketing • transparency • simplicity of design • open source • social coding

Innovations in tech comm

information typing • minimalism • task-based documentation • topic-oriented documentation • DITA • DocOps • Every Page Is Page One • emotional language • personalization • interactive video • user-generated content • content strategy • single sourcing

Most significant innovation for TC?

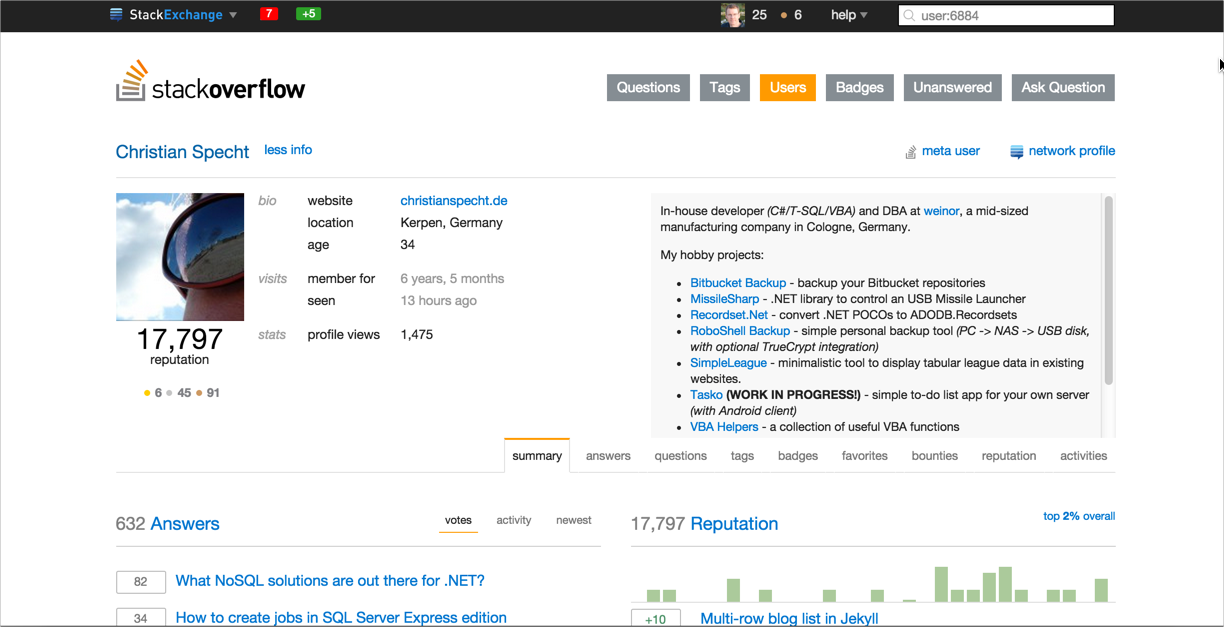

Everyone is a technical writer

Unofficial technical writer

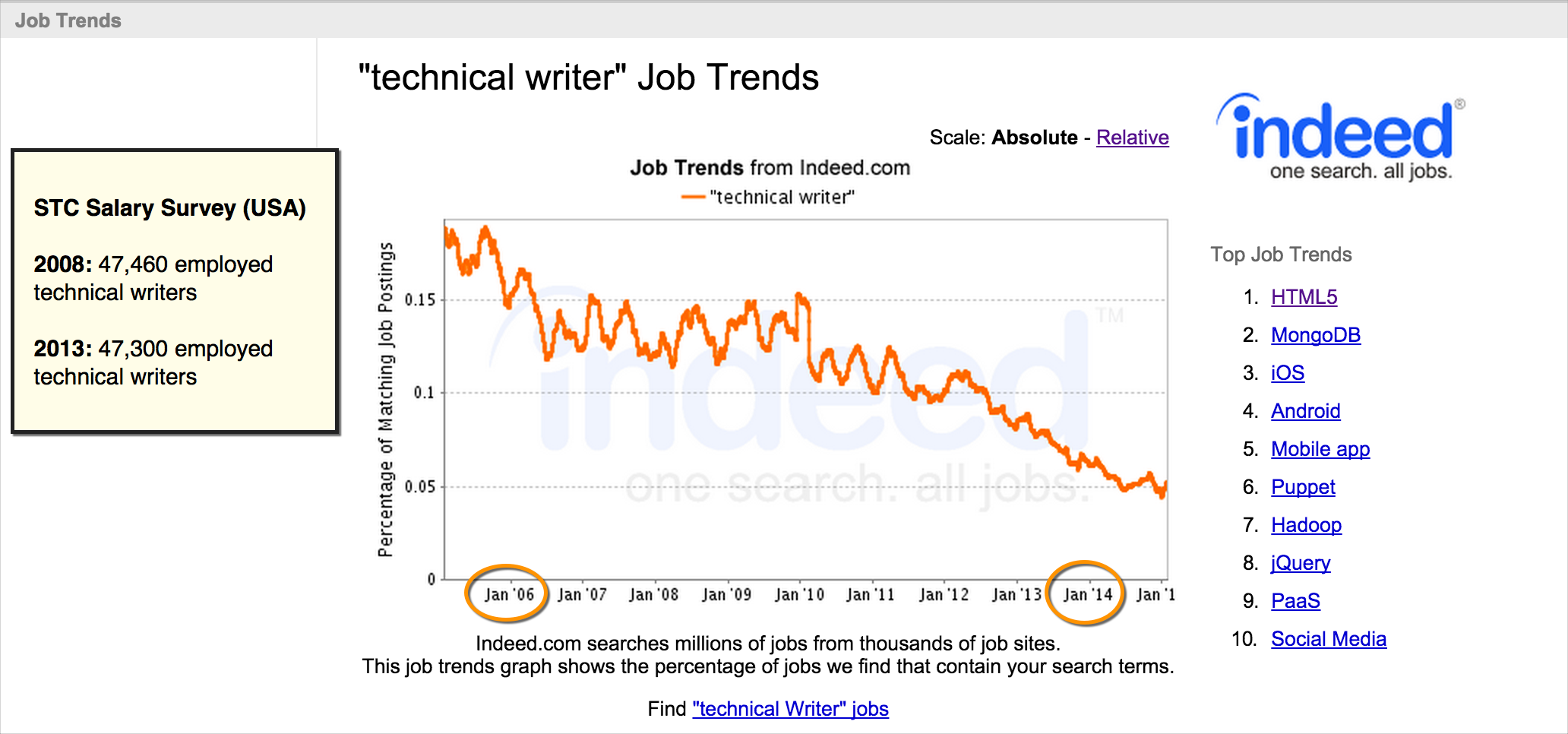

Job trends for "technical writer"

How to stay relevant?

Dilemmas with innovation

How long can you operate at a high-performing level while you do research and development?

How can you switch models when you're mired in legacy content and systems?

How can you build anything if you're not really an engineer?

What happens to your career skillset when you invest in an obscure technology?

Pressure to conform to mainstream

So many limitations

XML and the web: Drifting apart?

JSON is standard

Technologies used by web developers

The turning point

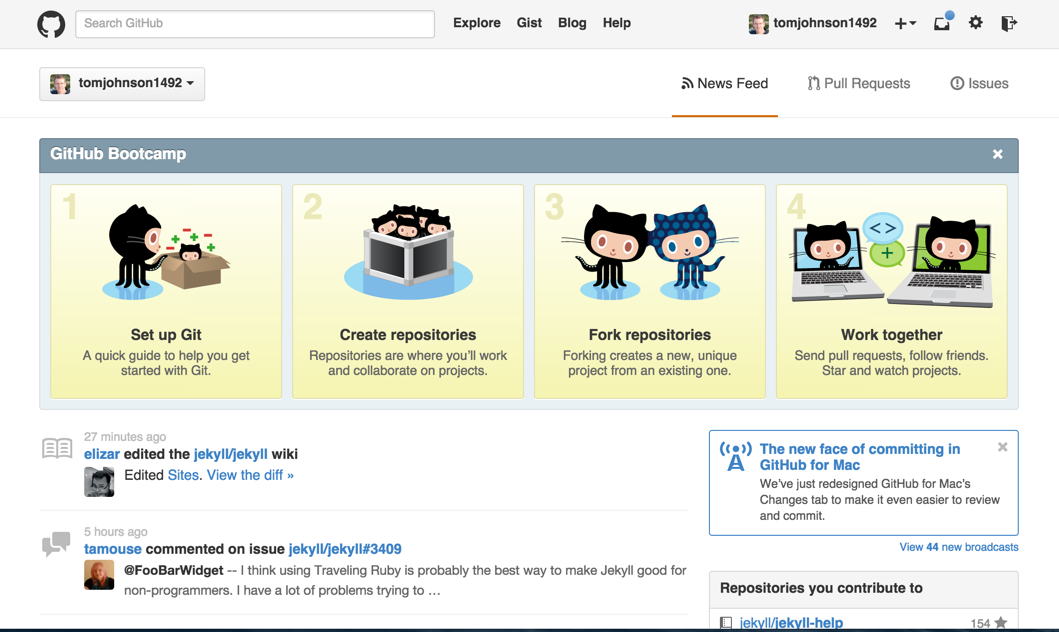

The genius of Github and open source

Collaborate, version, distribute

Revolutionary for software development

"Github, in my humble opinion, is one of the most revolutionary things that has happened to software in 20 years."

— Joe Malin

"Social coding"

What if everyone's help were in an open Github repo?

Treating documentation as code

Writing documentation like a developer

File format: Text files
Authoring: Text editor
Building: Continuous build scripts
Collaborating: Source control
Versioning: Source control
Pushing live: Terminal commands

This slidedeck is just HTML5.

Here's the code for this slide:

  <h3>This slidedeck is just HTML5.</h3>
     <p>Here's the code for this slide:</p>
         <p>Github repo: <a target="_blank"
         <p><i>So much more satisfying to work in text file formats.</i></p>


So much more satisfying to work in text-file formats.

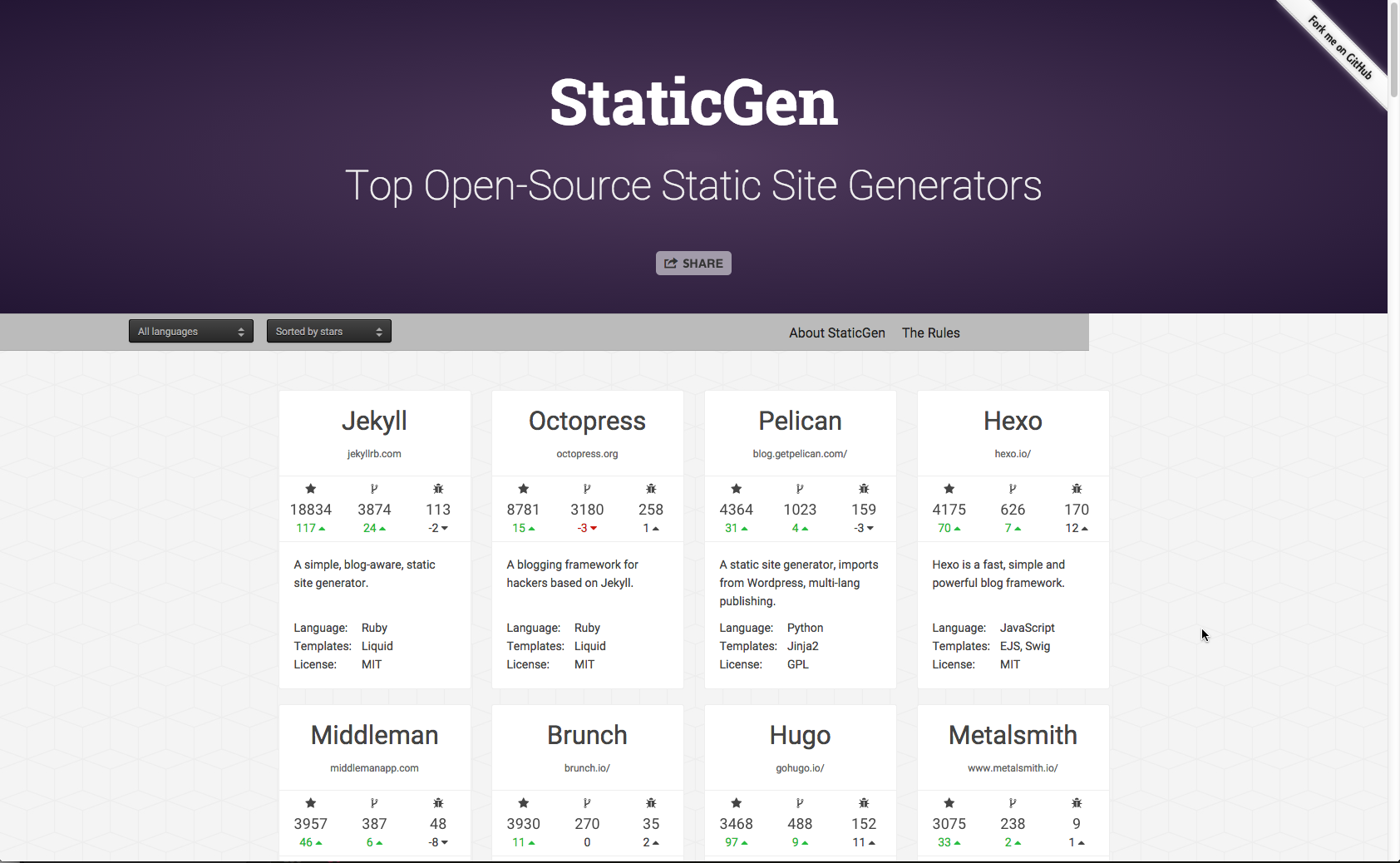

Disruptive tech: Static site generators

Lightweight, flexible, no database

Static site generator characteristics

  • Lightweight
  • Fast
  • Usable
  • Flexible
  • Secure
  • Suitable for hackers

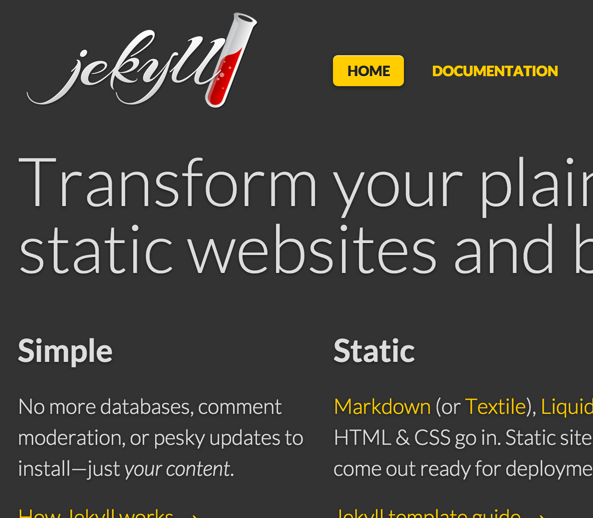

Jekyll is most popular

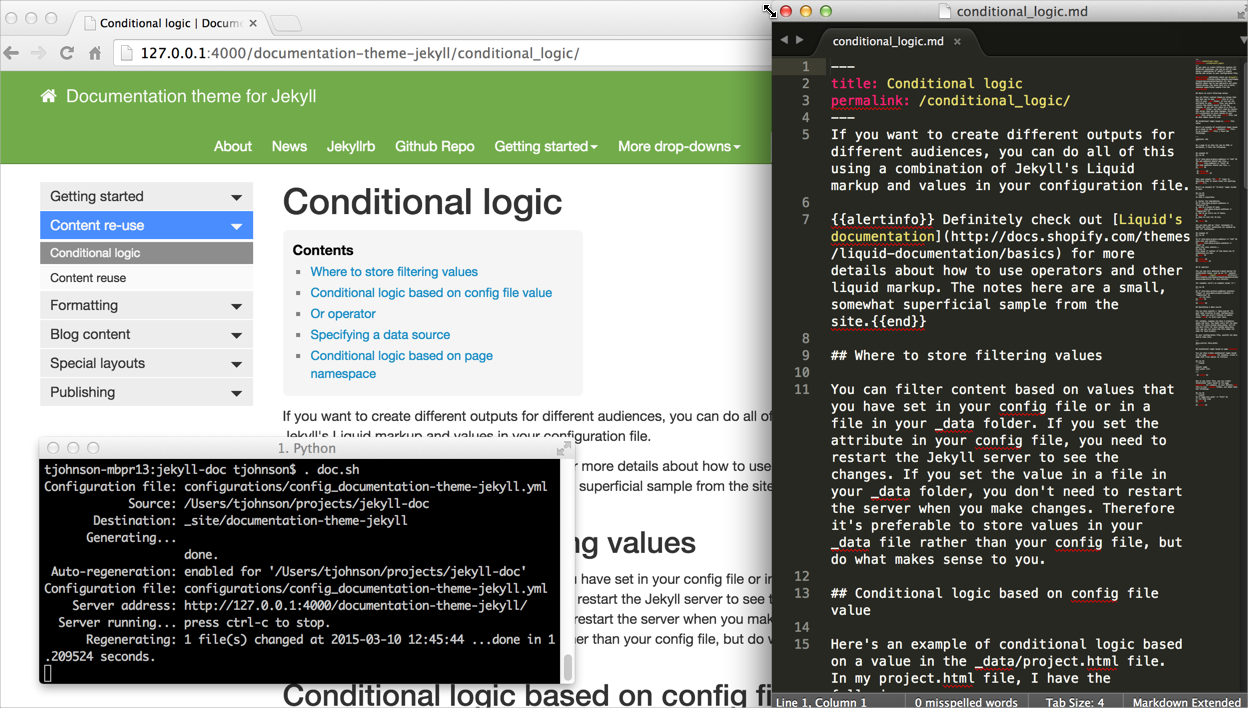

Live preview rebuilds with each save

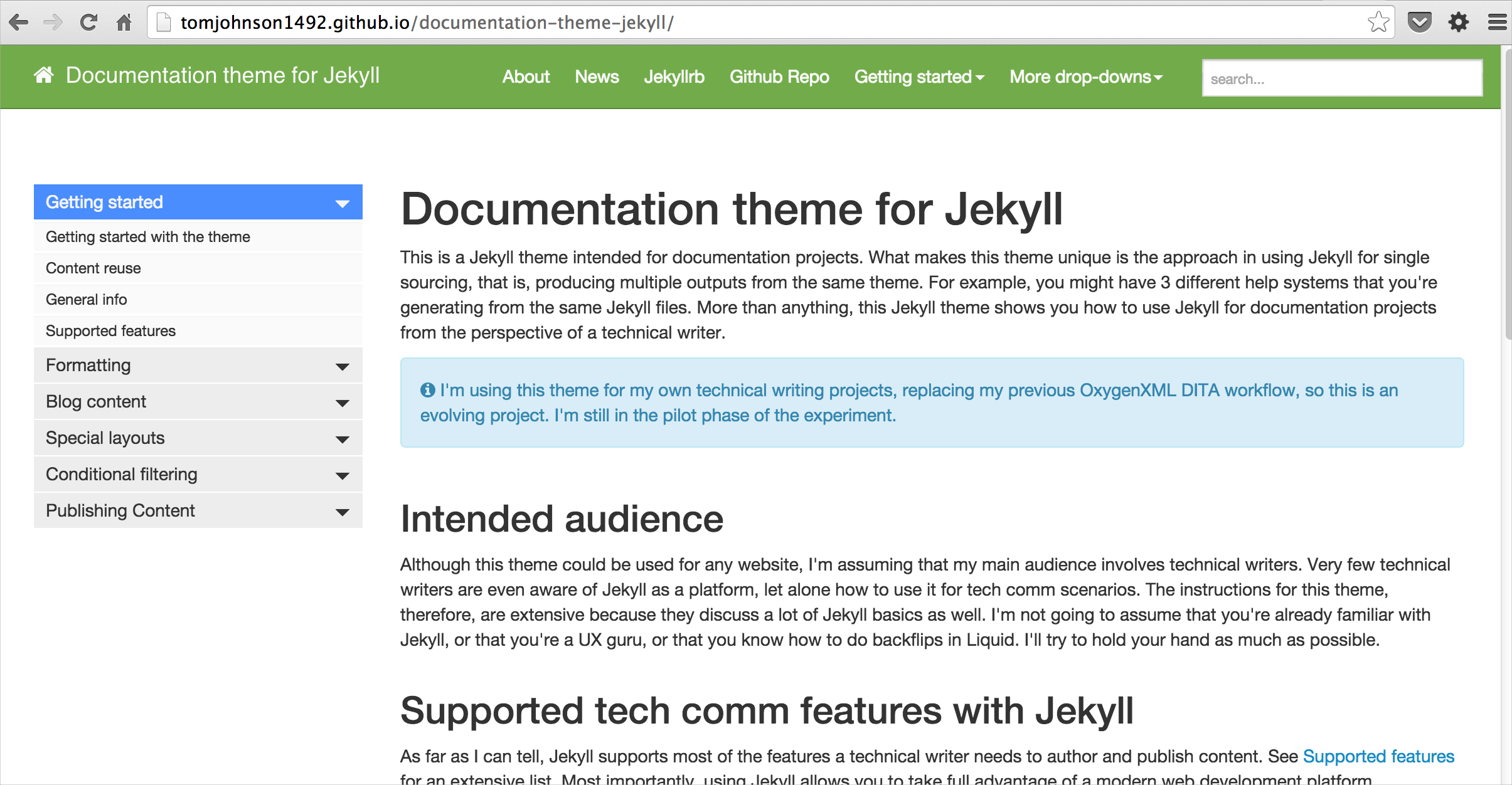

Documentation theme I built on Jekyll

Clone me here:

5 reasons why static site generators can be a disruptive technology

Reason 1: Snug fit into web technologies

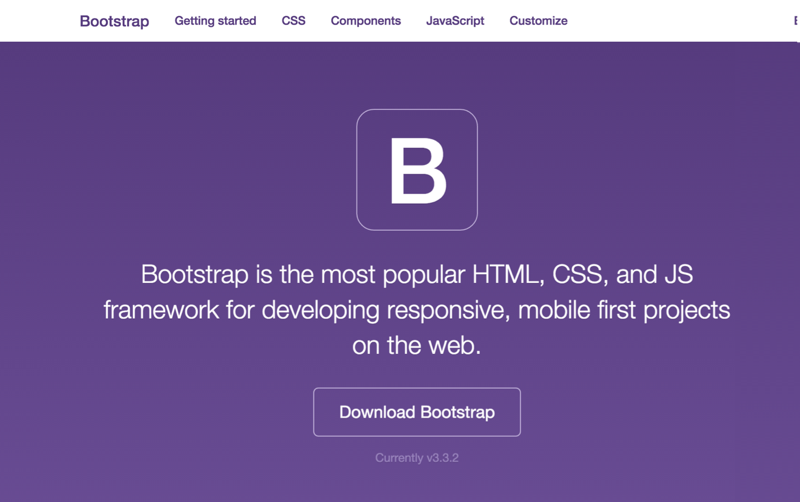

UX talent will help when platform is web

Reason #2: Scale infinitely

Grow as needed without budget constraints

  • Allow unlimited number of authors.
  • No price per "seat."
  • Avoid free-for-all content junkyard of wikis.
  • Handle any type of content.

Allows everyone to be a tech writer

One person writing from one perspective in one company, especially an outsider to the actual business context of the user, can't possibly cover all the information needs for every user.

Reason #3: Content APIs

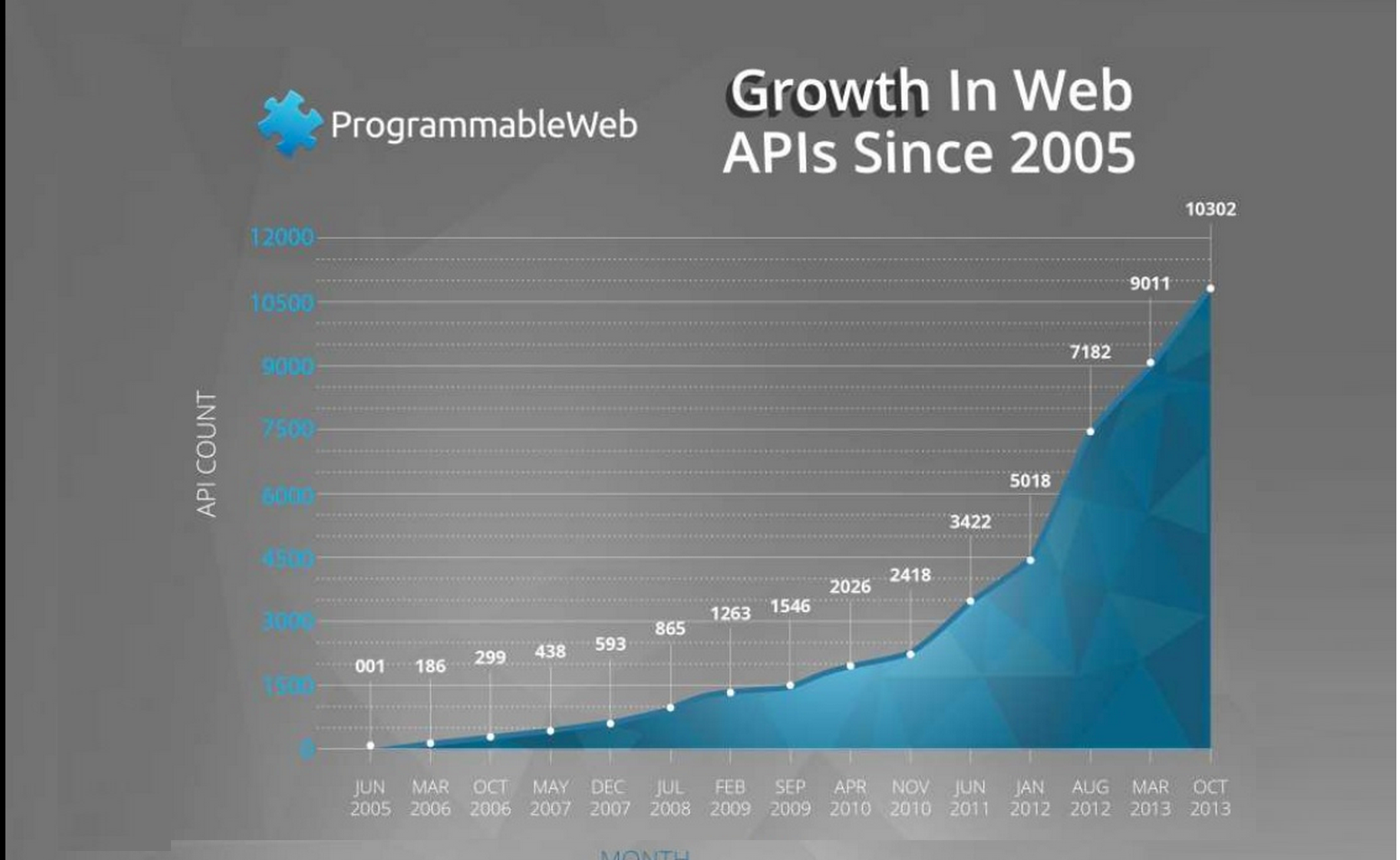

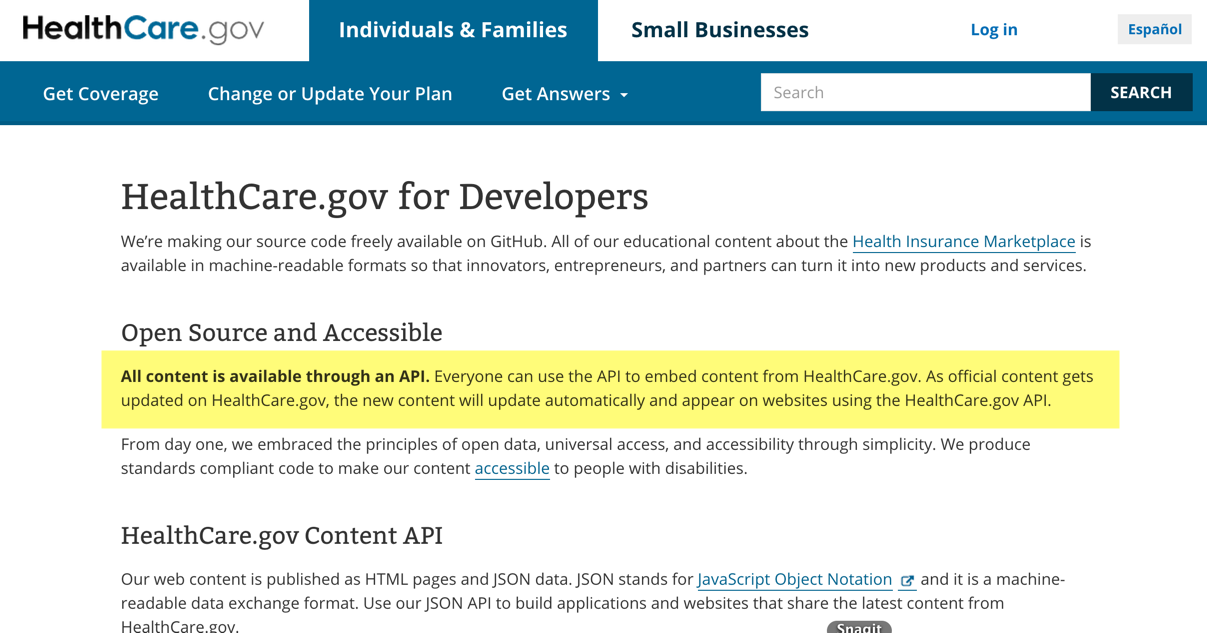

Growth in REST APIs site as API

Why not create help content APIs?

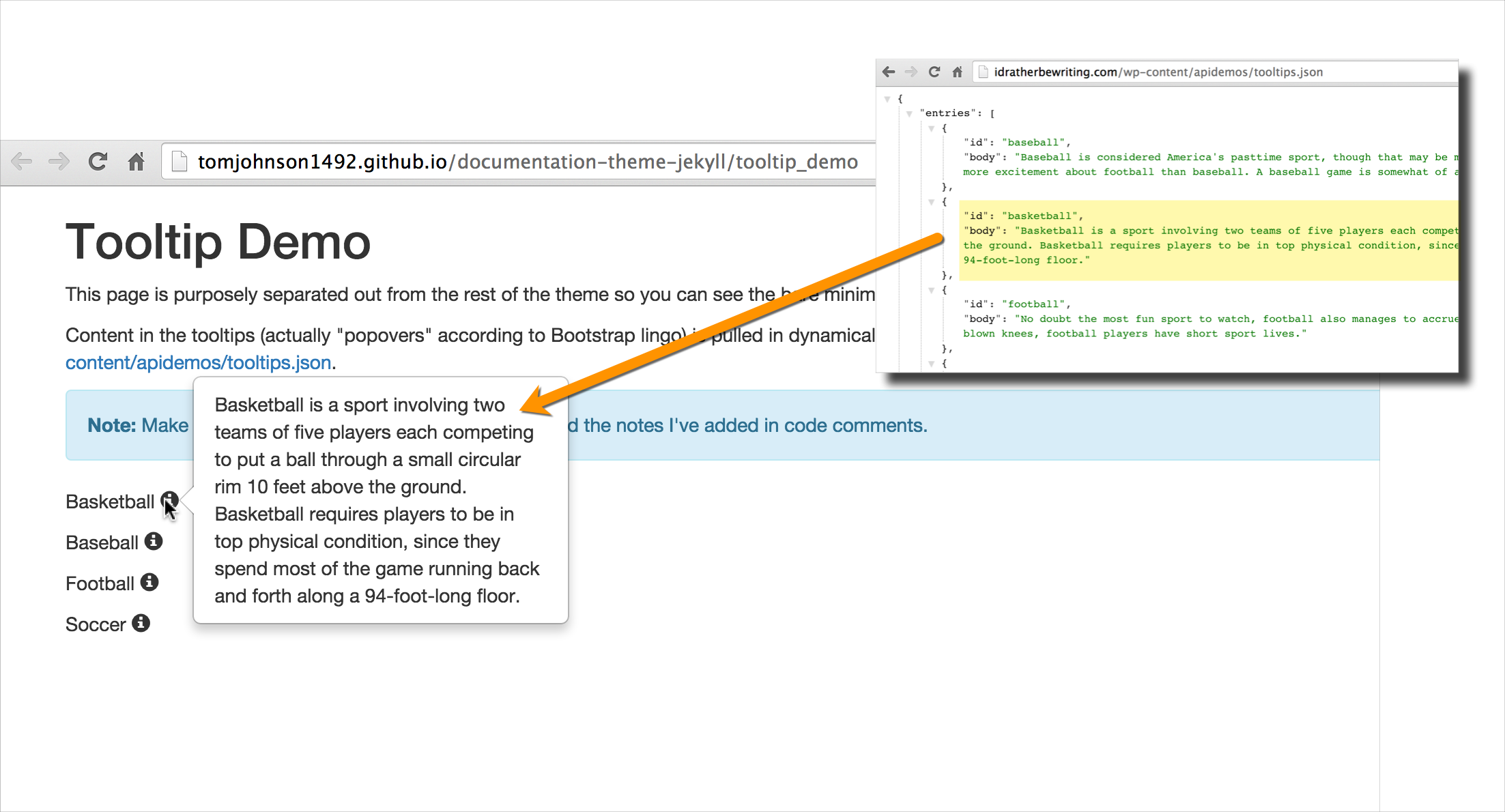

Populate UI text dynamically from API

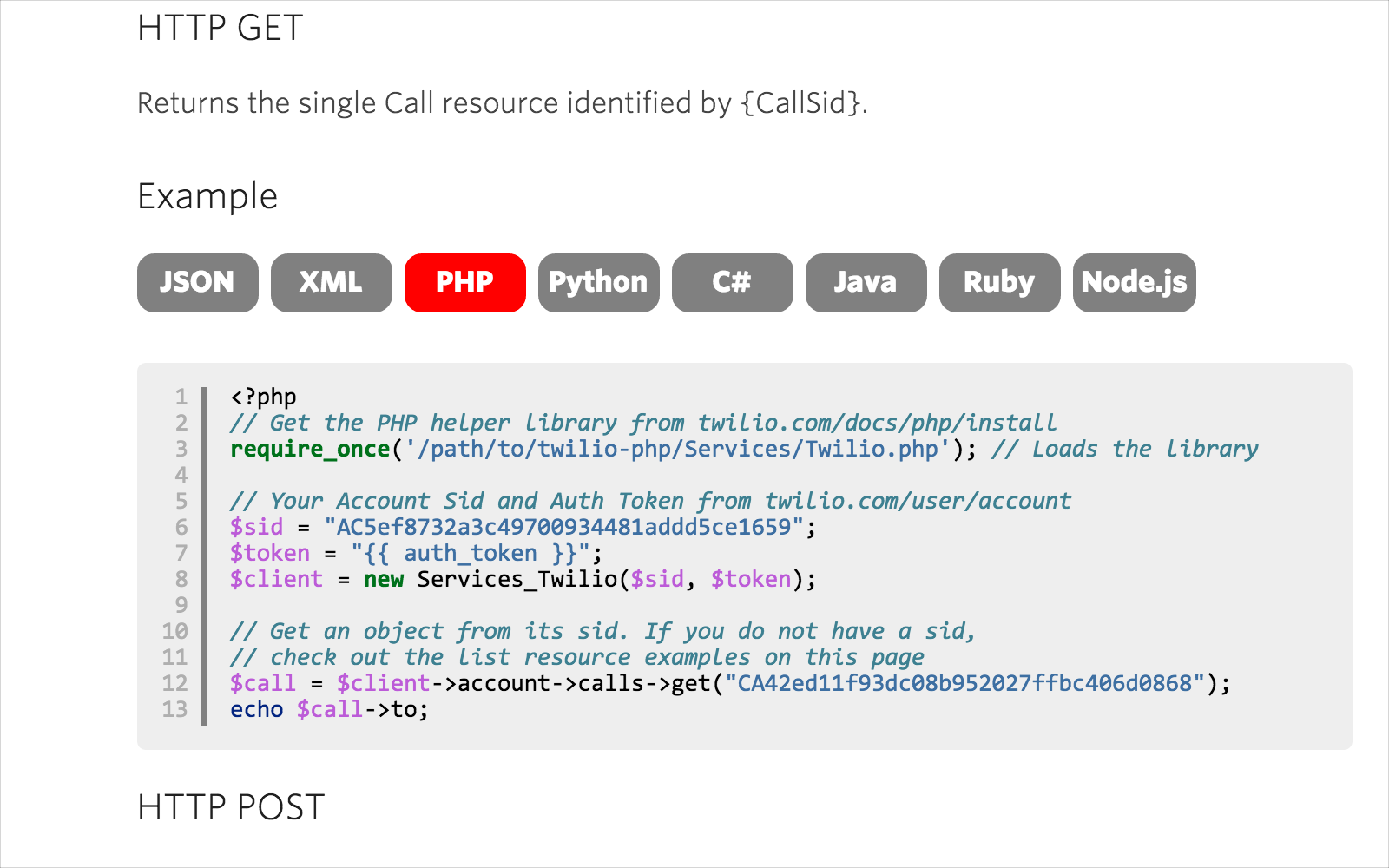

Reason #4: Push content into templates

Custom templates for custom content types

Iterate through items

    {% for page in site.tooltips %}
      "id"    : "{{ }}",
      "body": "{{ page.content | strip_newlines | replace: '\', '\\\\' |
               replace: '"', '\\"' }}"
    } {% unless forloop.last %},{% endunless %}
  {% endfor %}

Reason #5: Leverage open source model

My larger point:

Maybe not Jekyll, but ...

Look outside the tech comm bubble

3 Strategies for innovation

  1. Look outside the tech comm bubble.
  2. Ride the innovation of the web.
  3. Share with the community around you.

Comparing Jekyll with DITA

1a. Authoring content in DITA

<task id="task_mhs_zjk_pp">
<title>Printing a page</title>
       <stepsection>To print a page:</stepsection>
               <cmd>Go to <menucascade><uicontrol>File</uicontrol>
               <cmd>Click the <uicontrol>Print</uicontrol>

1b. Authoring content in Markdown

## Print a page
1. Go to **File > Print**.
2. Click the **Print** button.

2a. Conditional processing in DITA

<p audience="mac">Your MacBook Pro is going to make you so happy!</p>
<p audience="pc">Thanks for supporting the dying PC industry.</p>
<p>Congratulations on the purchase of your new computer.</p>

2b. Conditional processing in Jekyll

{% if site.audience == "mac" %}
Your MacBook Pro is going to make you so happy!
{% elsif site.audience == "pc" %}
Thanks for supporting the dying PC industry.
{% else %}
Congratulations on the purchase of your new computer.
{% endif %}

3a. Content Re-use in DITA

<topic id="topic_123">
<note type="warning" id="bolt_warning">Don't overtighten the bolts,
   as it may cause stripping.</note>
<note conref="notes.dita#topic_123/bolt_warning"/>

3b. Content Re-use in Jekyll

<b>Warning:</b> Don't overtighten the bolts, as it may cause stripping.
{% include %}

4a. Building a TOC in DITA

<topichead navtitle="Links">
   <topicref href="keyref_links.dita">
      <topicref href="inline_links.dita" audience="field_engineers"/>
   <topicref href="related_links.dita">
   <topicref href="relationship_tables.dita"/>

4b. Building a TOC in Jekyll

         - title: Sidebar
         - title: Overview

         - title: Introduction
           url: /introduction/
           audience: customer
           print: true

         - title: Release Notes
           url: /release_notes/
           audience: customer, fe
           print: false

         - title: Getting Started
           url: /getting_started/
           audience: customer, fe
           print: true

5a. Creating Information Patterns in DITA

<task id="task_123">
   <title>How to wash dishes</title>
   <shortdesc>My short description ...</shortdesc>
   <prereq>Before doing the dishes, you will need soap and
   <p>This is my context...</p>

   <cmd>This is step one</cmd>
   <info>This is a note...</info>

   <cmd>This is step two...</cmd>

5b. Creating Information Patterns in Jekyll

title: My Doc Collection
summary: "My summary here..."
  - param1:
    title: "my param title"
    data_type: "boolean"
    description: "my param description"
  - param2:
    title: "my param title"
    data_type: "boolean"
    description: "my param description"
{% for parameter in site.doc.parameters %}

6a. PDF creation in DITA

Set up XSL-FO transform

6b. PDF creation with Jekyll

No easy workflow, but possible via PrinceXML

7a. Reviewing Content in DITA

  • OxygenXML webhelp with feedback
  • PDF for annotation
  • Vendor review tool (e.g., easyDITA)

7b. Reviewing Content in Jekyll

  • Github workflow
  • Online platforms: Poetica, Beegit, CloudCannon
  • Comment forms: Disqus, Discourse, Juvia

8a. Features DITA has that Jekyll lacks

  • Enforced information types
  • Out-of-the-box transforms beyond HTML
  • Universal, interchangeable format
  • Relationship tables
  • Indexing tools

8b. Features Jekyll has that DITA lacks

  • Liquid templating language
  • Variables
  • Tags
  • Auto-preview server
  • Custom JS; info patterns on page

Broad comparisons

Open sourceOpen source
Rules-basedFlexible, free
Vendor heavyVendor light
XML architectureWeb architecture
Committee drivenDeveloper driven
XML editorText editor

Which to use?

Large teamSmall team
Lots of PDFsWeb deliverables
Tech writer contributorsDeveloper contributors
Enforced consistencyFlexibility in design
Prefer CMSPrefer revision control
